Description
Features

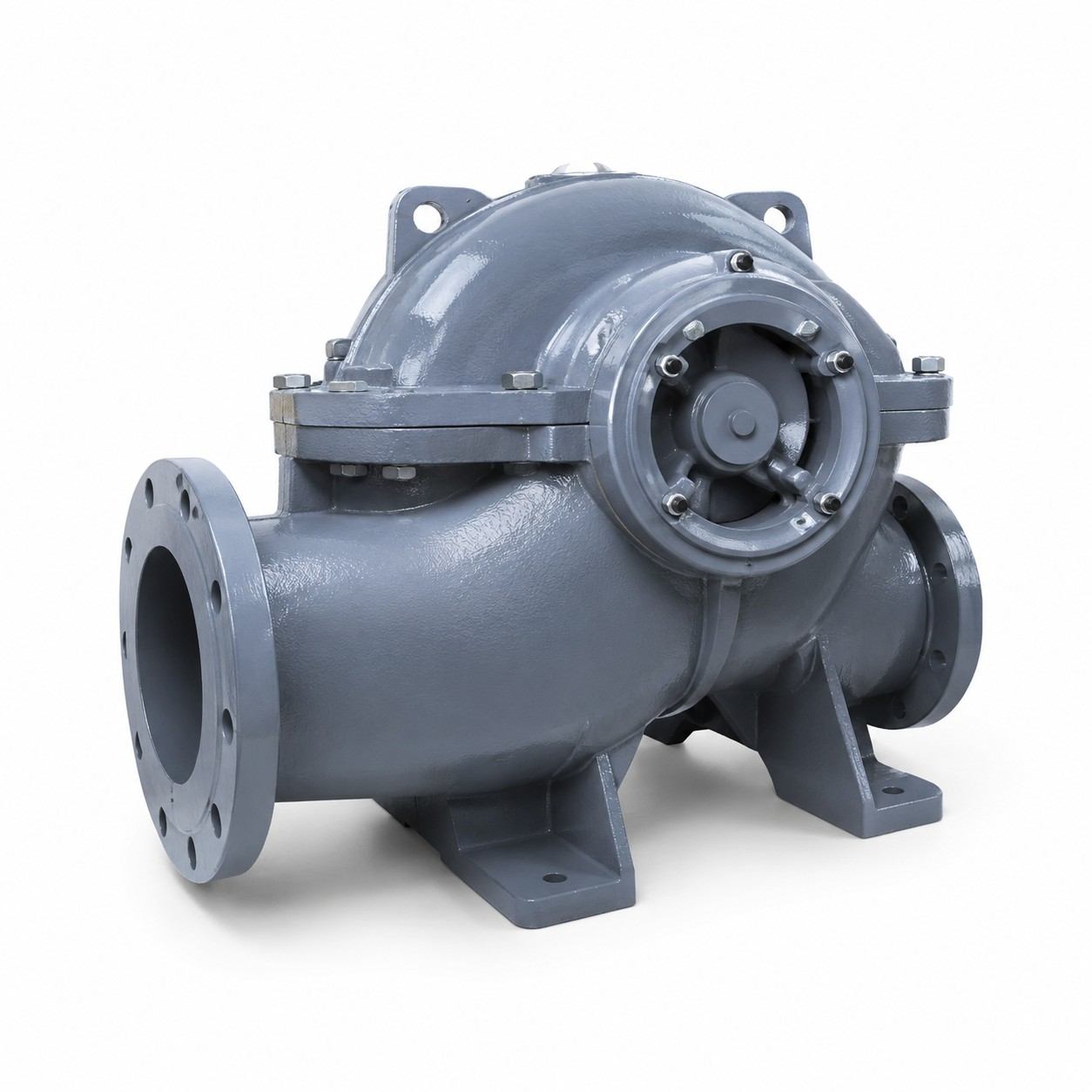

- Horizontally axially split casing design
- Top half lifts off for full rotor access without disturbing pipework
- Double-suction impeller balances axial thrust
- Smooth, low-vibration running at high flow
- Highest capacity in the range, up to 5000 m³/hr
- Discharge sizes up to 500 mm
- Efficient at large volume
- Built for water supply, HVAC, and fire-fighting duty
- Full material range from cast iron to Hastelloy B & C
Materials
- Cast Iron, Cast Steel
- SS-304 / 304L, SS-316 / 316L
- Bronze, Alloy-20
- CD4MCU
- Hastelloy B & C
Operating Range
- Capacity: Up to 5000 m³/hr
- Head: Up to 140 m
- Discharge size: 50 to 500 mm
- Temperature: Up to 100°C
- Speed: Up to 3500 rpm
- Pressure: Up to 14 kg/cm²
Applications
- Fire-fighting and high-pressure boosting systems
- Primary and secondary HVAC
- Mine dewatering, cooling tower, and recirculation
- Industrial utility water and desalination
- Water supply, paper, refineries, sugar, and steel plants
- Irrigation, power plants, and refrigeration systems
