Description
Features

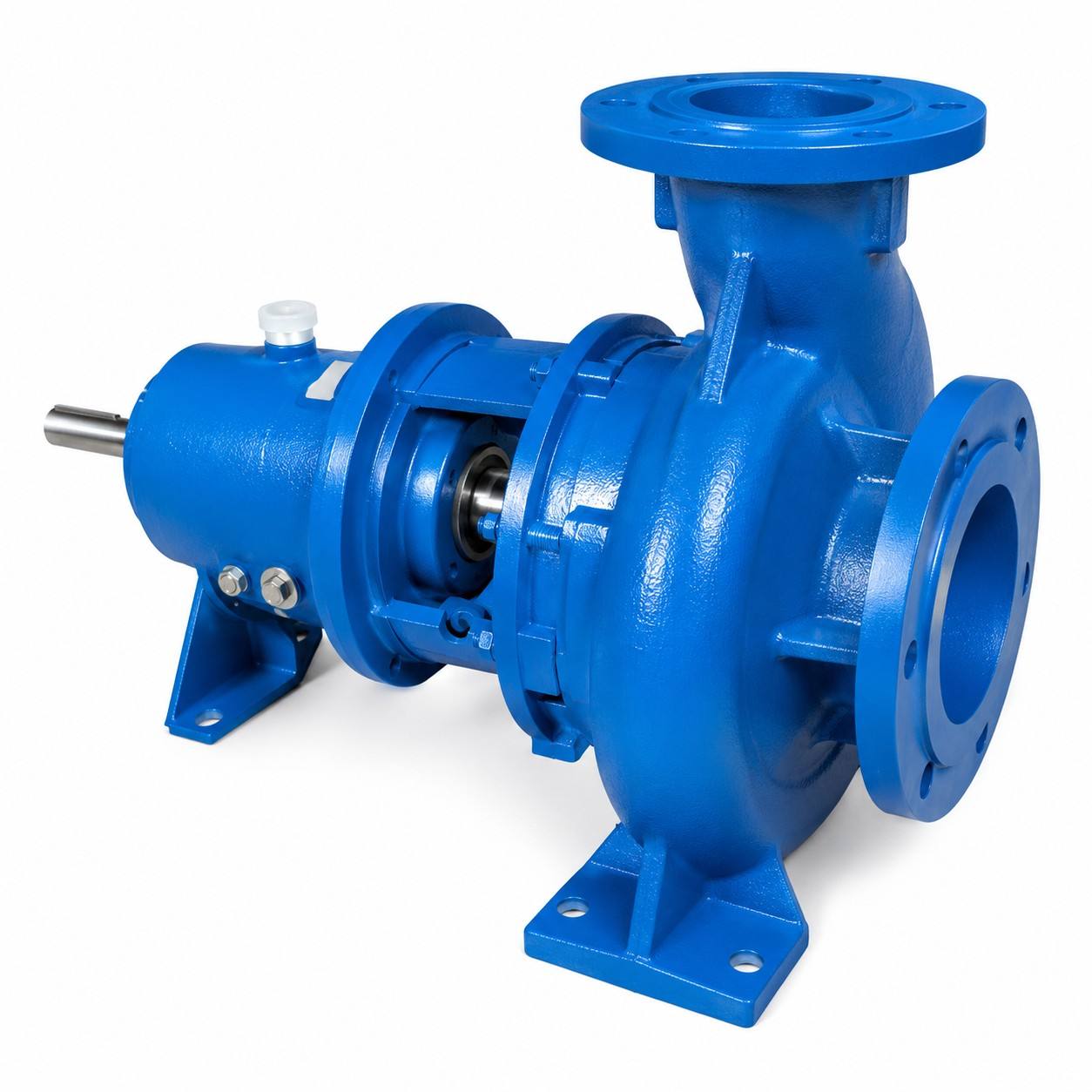

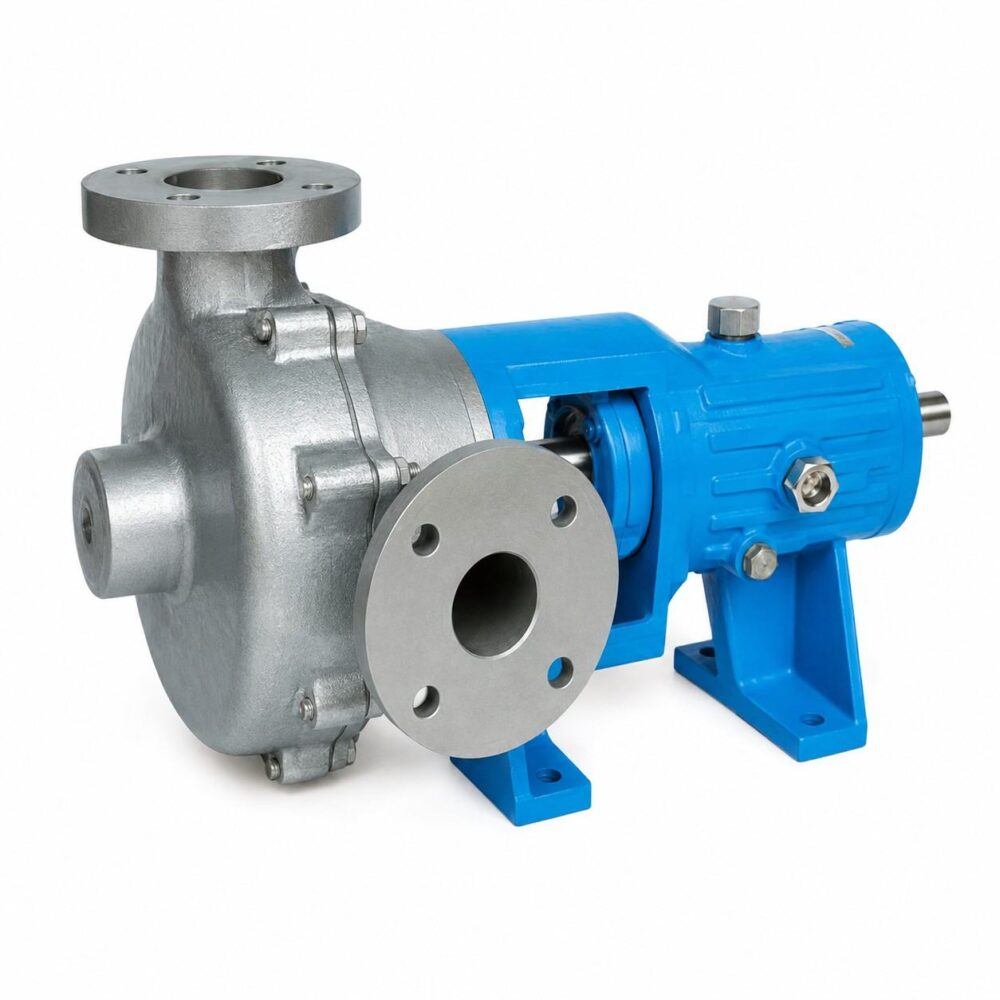

- Single-stage, end-suction, back pull-out design
- Service without disturbing casing or pipework
- High-efficiency hydraulic design
- Conforms to ISO 2858 dimensions; DIN 2543 flanges
- Heavy-duty shaft, sleeve, and bearings
- Widest duty range in the process line
- Handles clean, corrosive, and mildly abrasive liquids
- Impeller trimmed to your exact duty point
- Interchangeable, standardised spares
- Suitable for V-belt drive or direct coupling to a motor
Materials
- Cast Iron, Cast Steel
- SS-304 / 304L, SS-316 / 316L
- Bronze, Alloy-20
- CD4MCU
- Hastelloy B & C
Operating Range
- Capacity: Up to 1500 m³/hr
- Head: Up to 150 m
- Discharge size: 25 to 300 mm
- Temperature: Up to 350°C
- Speed: Up to 3500 rpm
- Pressure: Up to 15 kg/cm²
Applications
- Hot and cold water and cooling water circulation
- Condensate handling and fire-fighting systems
- Corrosive and abrasive process chemicals, acids, alkalis, solvents, slurries
- Organic and inorganic chemicals, D.M. water, thermic fluid
- Water supply, building services, cooling-tower duty
- Refineries, sugar, paper, textile, and power stations
