Description
Features

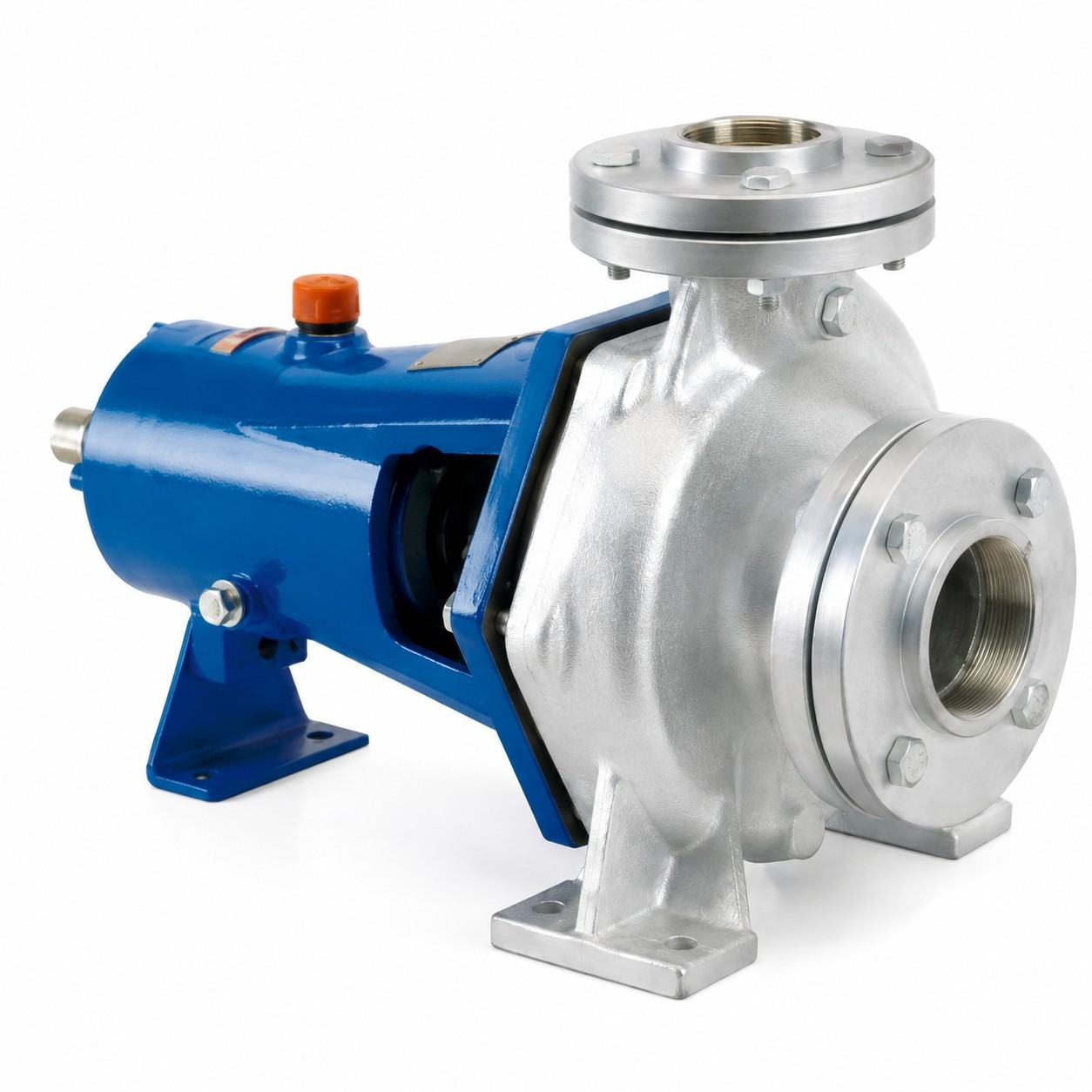

- End-suction, horizontal centrifugal pump
- Semi-open impeller for liquids with solids in suspension
- Resists clogging on polluted and slurried liquids
- Compact footprint for moderate-flow duty
- Impeller-to-casing clearance set for solids handling and efficiency
- Handles corrosive chemicals, effluent, and solvents
- Flange dimensions to BS 10 Table D
- Suited to ETP/STP and chemical process service
- Full material range from cast iron to Hastelloy B & C
Materials
- Cast Iron, Cast Steel
- SS-304 / 304L, SS-316 / 316L
- Bronze, Alloy-20
- CD4MCU
- Hastelloy B & C
Operating Range
- Capacity: Up to 51 m³/hr
- Head: Up to 46 m
- Discharge size: 25 to 50 mm
- Temperature: Up to 180°C
- Speed: Up to 3500 rpm
- Pressure: Up to 4.6 kg/cm²
- Flange: BS 10, Table D
Applications
- ETP, STP, and waste-water treatment plants
- Fertilizer, cement, and steel plants
- Organic and inorganic chemicals and corrosive process
- Effluent, filter-press, and slurry applications
- Pharmaceutical, dyes, textiles, kerosene, and solvents
- Public and civil engineering, paper and pulp
