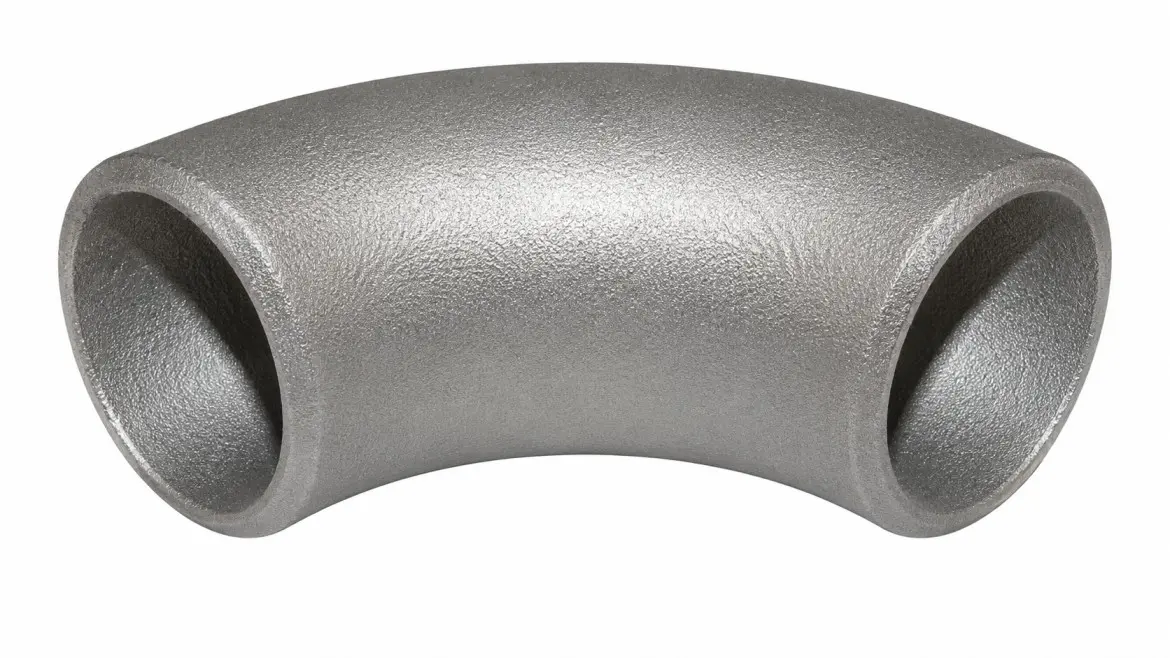

Metal Pipe Elbow Manufacturer in India

Industrial pipe elbows in carbon steel, stainless steel, alloy steel, and specialty grades — 45°, 90°, and 180° configurations for pipeline, process, and heavy engineering applications.

Sharma Technocast is a metal pipe elbow manufacturer in India serving OEM buyers, EPC contractors, fabrication shops, and plant maintenance teams across India and for export. We supply steel pipe elbows in long radius and short radius configurations, manufactured through seamless forming, forging, induction bending, and fabrication — in sizes from 1/2″ NPS to 48″ NPS and beyond for custom large diameter requirements. Every elbow is manufactured to ASME B16.9, ASME B16.28, and MSS SP-75 standards with full material traceability and test documentation.

Get a Quote

Industrial Conveyor Roller

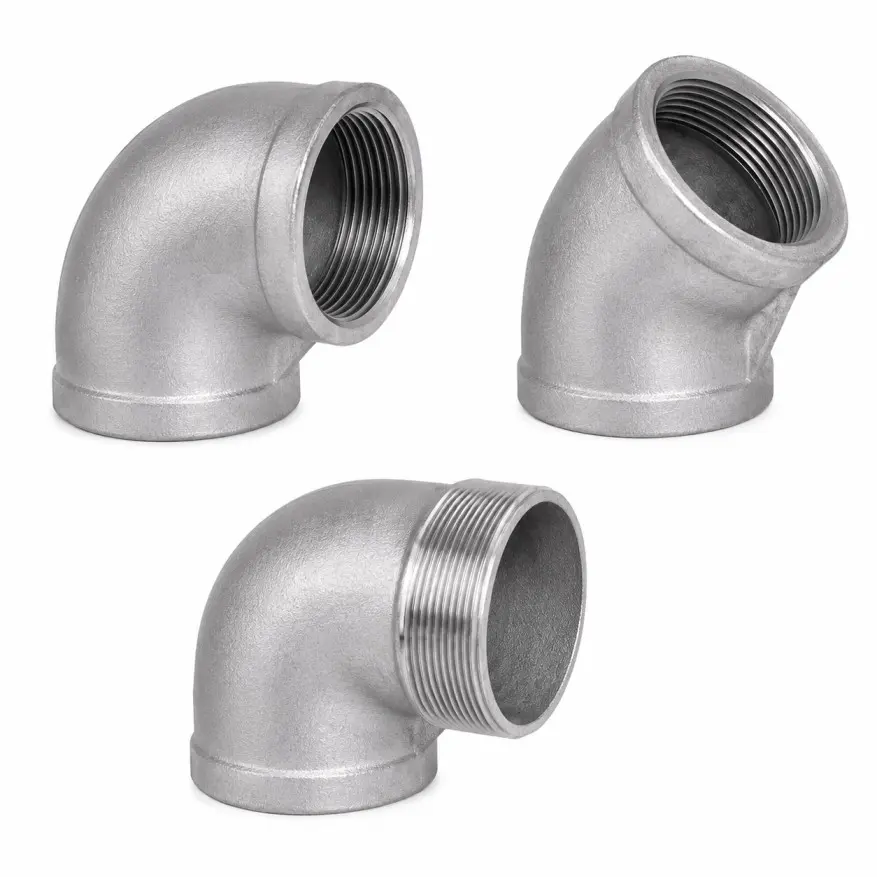

What Is a Metal Pipe Elbow?

A metal pipe elbow is a pipe fitting installed between two lengths of pipe to change the direction of flow in an industrial piping system. Pipe elbows connect two pipe sections at a specific angle — most commonly 45 degrees, 90 degrees, or 180 degrees — allowing the pipeline to navigate around obstacles, structures, equipment, and terrain while maintaining system pressure and flow characteristics. Metal pipe elbows are among the most frequently used components in any industrial piping network. Every refinery, power plant, water treatment facility, petrochemical complex, and pipeline system relies on hundreds or thousands of pipe elbows to route piping between equipment, vessels, pumps, and terminal points. The angle, radius, material grade, wall thickness, and manufacturing method of each elbow directly affect the pressure drop, flow turbulence, structural integrity, corrosion resistance, and operational lifespan of the piping system it serves. Selecting the right pipe elbow for the application — whether it is a carbon steel pipe elbow for a high-pressure oil and gas transmission pipeline, a stainless steel pipe elbow for a corrosive chemical process line, or an alloy steel pipe elbow for a high-temperature steam system — is essential for safe and reliable long-term piping system performance.

Types of Metal Pipe Elbows We Manufacture

TYPES OF METAL PIPE ELBOWS

Metal pipe elbows are classified by three parameters — angle, bend radius, and manufacturing method. Sharma Technocast manufactures all standard and custom configurations.

45 Degree Pipe Elbow

Used where a gentle, gradual change of direction is required in the piping run. The 45° elbow produces the lowest pressure drop among standard elbow angles and is common in long-distance pipeline systems and gravity-fed piping.

90 Degree Pipe Elbow

The most widely used pipe elbow in industrial piping. The 90° elbow creates a perpendicular direction change and is found in virtually every piping system across all industries — from refinery process piping to building HVAC systems.

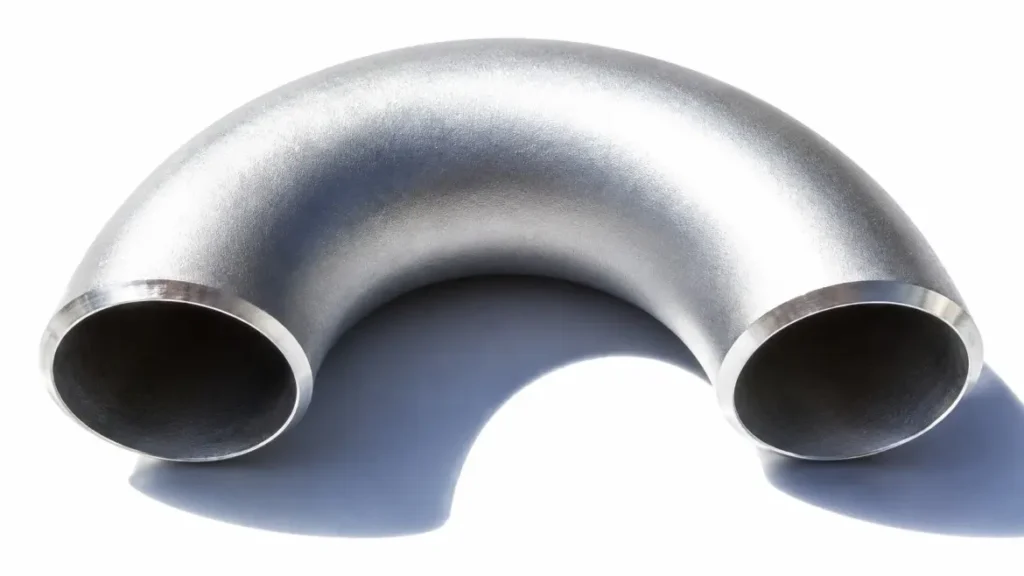

180 Degree Pipe Elbow (Return Bend)

Used to completely reverse the direction of flow. 180° elbows are installed in heat exchanger tube bundles, coil piping systems, bypass loops, and any application where the pipeline needs to double back on itself within a compact space.

Long Radius Pipe Elbow (LR — 1.5D)

The bend radius is 1.5 times the nominal pipe diameter. Long radius elbows are the default choice for most industrial piping systems. They produce lower pressure drop, less turbulence, and reduced erosion compared to short radius elbows. Specified by ASME B16.9.

Short Radius Pipe Elbow (SR — 1D)

The bend radius equals the nominal pipe diameter. Short radius elbows are used where space is limited and a tighter bend is needed — such as in compact equipment skids, offshore platforms, and congested plant piping. Specified by ASME B16.28.

3D, 5D, and 10D Pipe Elbows

Extended radius elbows with bend radii of 3, 5, or 10 times the nominal pipe diameter. These are typically produced through induction bending and are used in pipeline applications where minimal pressure drop and smooth flow characteristics are critical — particularly in oil and gas transmission pipelines.

Seamless pipe elbow — manufactured from seamless pipe with no weld seam, offering superior strength and preferred for high-pressure and critical-service applications

Welded pipe elbow — manufactured from welded pipe, suitable for lower-pressure and general industrial applications at a more economical cost point

Forged pipe elbow — manufactured by forging a heated billet into a die, producing maximum strength and impact resistance for high-pressure systems including wellheads, hydraulic piping, and steam systems

Fabricated pipe elbow — made by cutting pipe segments at calculated miter angles and welding them together, used for large diameter pipe elbows and non-standard sizes where standard formed fittings are not available

Induction bent pipe elbow — produced by passing straight pipe through an induction heating coil while mechanically bending to a precise radius, preferred for large diameter pipeline applications requiring tight geometric control and minimal wall thinning

Materials Available

Sharma Technocast supplies industrial pipe elbows in a comprehensive range of materials to meet the specific requirements of every piping application — from standard carbon steel for general service to high-alloy grades for extreme temperature, pressure, and corrosion conditions.

Carbon Steel Pipe Elbow

ASTM A234 WPB (standard grade for general industrial piping), ASTM A234 WPC, ASTM A420 WPL6 (low-temperature service down to -50°C), API 5L grades for pipeline-specification elbows.

Carbon steel pipe elbows are the most widely used in industrial piping — accounting for the majority of elbows installed in oil and gas, water distribution, structural, and general engineering applications.

Stainless Steel Pipe Elbow

304 stainless steel elbow, 304L, 316 stainless steel elbow, 316L, 321 (stabilized for high-temperature service), 347, 310S (heat-resistant).

Stainless steel pipe elbows are specified for applications requiring corrosion resistance, hygiene, or high-temperature oxidation resistance — including petrochemical process piping, food and pharmaceutical manufacturing, desalination plants, and marine systems.

Alloy Steel Pipe Elbow

ASTM A234 WP5 (5Cr-0.5Mo), WP9 (9Cr-1Mo), WP11 (1.25Cr-0.5Mo), WP22 (2.25Cr-1Mo), WP91 (9Cr-1Mo-V).

Alloy steel pipe elbows are manufactured for high-temperature service in power generation, refinery, and petrochemical applications — particularly in boiler piping, superheater tubes, steam headers, and high-temperature process lines.

Mild Steel Pipe Elbow

IS 1239, IS 3589, and equivalent grades for general-purpose structural and utility piping in building services, drainage, and non-critical industrial applications.

Galvanized Steel Pipe Elbow

Hot-dip galvanized carbon steel elbows providing an additional layer of corrosion protection for water distribution, fire protection, outdoor piping, and marine-adjacent installations.

Aluminum Pipe Elbow

ASTM B361 WP6061 for lightweight, corrosion-resistant piping in marine, food processing, chemical, and instrumentation applications where weight savings and non-ferrous properties are required.

Metal Pipe Elbow Specifications

Parameter	Details
Material	Carbon Steel, Stainless Steel, Alloy Steel, Mild Steel, Galvanized Steel, Aluminum
Standards	ASME B16.9, ASME B16.28, MSS SP-75, ASTM A234, ASTM A403, ASTM A420
Angles	45°, 90°, 180° (Custom angles available on request)
Bend Radius	Long Radius (1.5D), Short Radius (1D), 3D, 5D, 10D
Size Range	1/2" NPS to 48" NPS (Larger sizes available via fabrication or induction bending)
Wall Thickness / Schedule	SCH 5, SCH 10, SCH 20, SCH 40, SCH 60, SCH 80, SCH 100, SCH 120, SCH 160, XXS
End Connection	Buttweld (BW), Socket Weld (SW)
Surface Finish	As-Formed, Shot Blasted, Painted, Hot-Dip Galvanized, Pickled & Passivated (SS)
Manufacturing Method	Seamless, Welded, Fabricated, Forged, Induction Bent
Testing	Hydrostatic Test, PMI, UT, RT, HIC, NACE MR0175 (Sour Service), Dimensional Inspection
Documentation	MTC EN 10204 3.1, Chemical & Physical Test Reports, Dimensional Certificates

How Are Metal Pipe Elbows Manufactured?

Metal pipe elbows are manufactured through several distinct processes. The choice of manufacturing method depends on the pipe size, material grade, pressure rating, and application requirements.

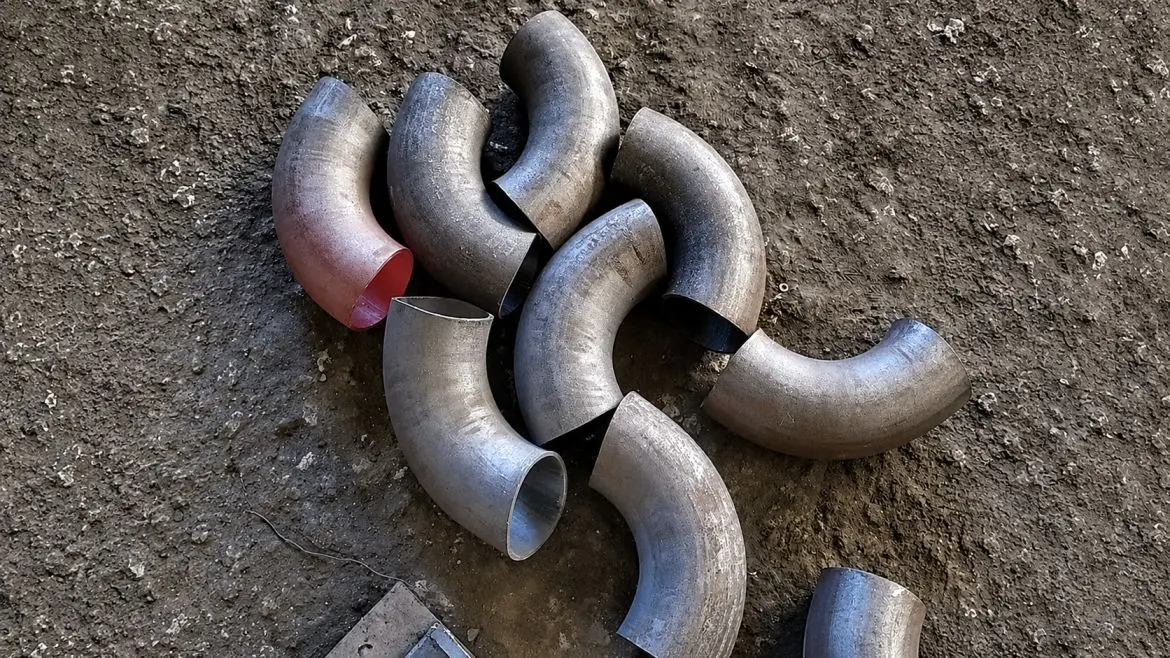

Mandrel Hot Forming

The most common manufacturing method for standard pipe elbows. A straight length of seamless or welded pipe is cut to calculated length, heated in a furnace to forming temperature, and then pushed over a horn-shaped mandrel that expands the pipe and shapes it into the required elbow angle and radius. After forming, the elbow is heat treated, beveled, and dimensionally inspected.

This method is used for standard seamless and welded pipe elbows from 1/2" NPS to approximately 24" NPS.

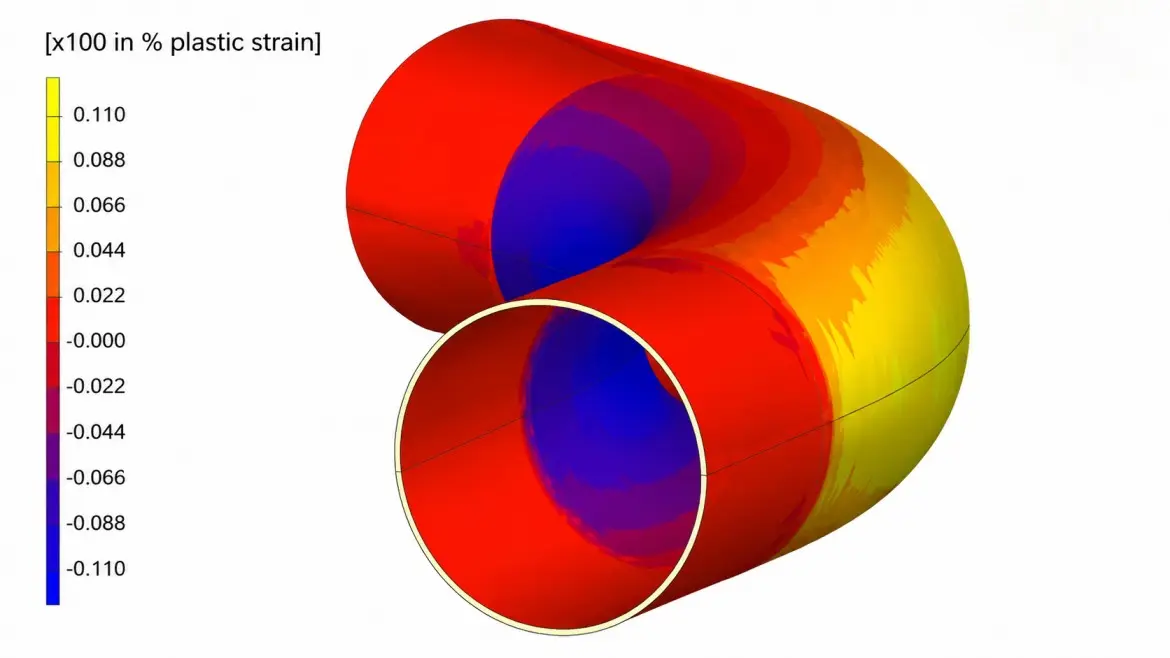

Induction Bending

For large diameter pipeline elbows, induction bending is the preferred manufacturing method. A straight pipe is fed through a concentrated induction heating coil that heats a narrow band of the pipe wall to forming temperature (typically 900°C–1,150°C) while the pipe is mechanically bent to the required radius by a swing arm. Induction bent pipe elbows offer precise radius and angle control with minimal wall thinning and ovality — making them the standard for oil and gas transmission pipelines and large-bore industrial piping.

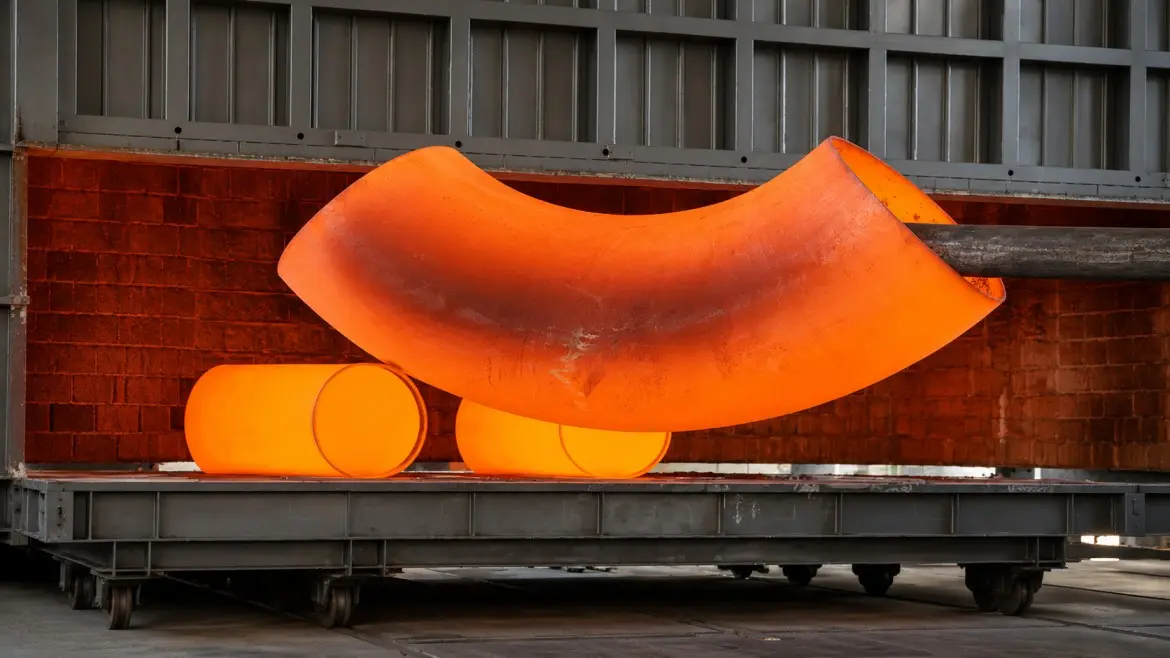

Forging

Forged pipe elbows are manufactured by heating a steel billet to forging temperature and pressing or hammering it into an elbow-shaped die. Forging produces a dense, grain-refined structure with superior mechanical properties — making forged pipe elbows the choice for high-pressure systems including oil and gas wellheads, hydraulic piping, and high-temperature steam systems.

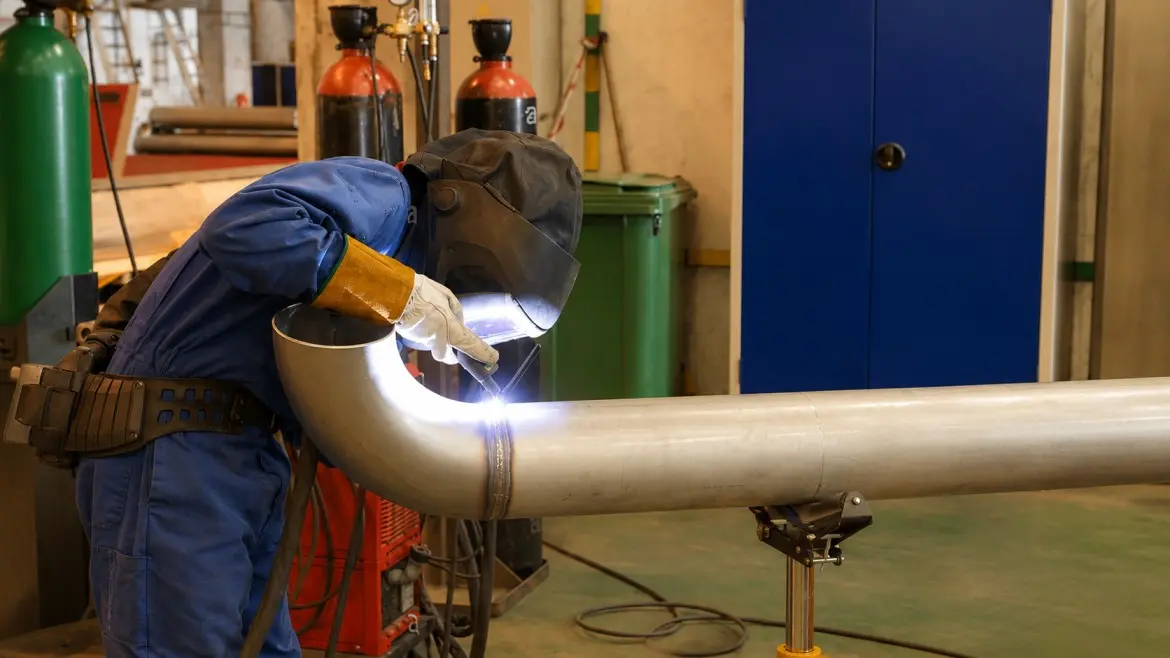

Fabrication (Miter Welding)

Fabricated pipe elbows are manufactured by cutting pipe segments at precisely calculated miter angles and welding them together to form the required elbow shape. This method is used for very large diameter pipe elbows (typically above 24" NPS) and non-standard sizes or angles where standard formed or forged fittings are not available. Fabricated pipe elbows are common in heavy engineering projects, power plant ducting, large-bore process piping, and structural piping applications.

Request For Quote!

Sharma Technocast supplies metal pipe elbows for industrial piping projects across India and for export. Share your requirements and our team will respond with a detailed quotation.

Quick Contact

Industries That Use Metal Pipe Elbows

Oil and gas

— carbon steel pipe elbows for oil and gas pipelines, gathering systems, processing facilities, and refinery process piping operating under high pressure and temperature

Petrochemical and chemical processing

— stainless steel pipe elbows for process industries handling corrosive chemicals, acids, alkalis, and high-purity fluids in reactor systems and transfer lines

Power generation

— alloy steel pipe elbows for high-temperature boiler piping, superheater tubes, steam headers, turbine connections, and cooling water systems at thermal, nuclear, and combined cycle plants

Food and beverage

— 304 and 316 stainless steel pipe elbows for hygienic process piping, CIP (clean-in-place) systems, and sanitary transfer lines requiring polished internal surfaces

Water treatment and distribution

— galvanized steel and mild steel pipe elbows for municipal water supply networks, sewage treatment plants, desalination facilities, and fire protection systems

Shipbuilding and marine

— stainless steel and aluminum pipe elbows for seawater cooling circuits, ballast systems, fuel transfer lines, and deck piping on naval and commercial vessels

Construction and HVAC

— mild steel and galvanized pipe elbows for building services including heating, cooling, drainage, gas distribution, and fire suppression piping

Pharmaceutical

— 316L stainless steel pipe elbows for high-purity water systems, WFI (water for injection) loops, and process piping meeting FDA and cGMP requirements

Why Choose Sharma Technocast for Metal Pipe Elbows?

Metal pipe elbows are manufactured through several distinct processes. The choice of manufacturing method depends on the pipe size, material grade, pressure rating, and application requirements.

Complete material range — carbon steel, stainless steel, alloy steel, mild steel, galvanized steel, and aluminum pipe elbows from a single manufacturer

All manufacturing methods — seamless, welded, forged, fabricated, and induction bent elbows matched to the application's pressure, temperature, and size requirements

Standard and custom sizes — 1/2" NPS to 48" NPS standard, with large diameter fabricated and induction bent elbows available beyond 48"

ASME B16.9 and ASME B16.28 compliant — dimensionally accurate and pressure-rated to governing international standards

Full documentation — MTC EN 10204 3.1, PMI verification, chemical and physical test reports, and dimensional inspection certificates on every order

AS9100 and ISO 9001 certified manufacturing — quality-verified production from our facility in Ahmedabad, Gujarat, India

Integrated manufacturing — pipe elbows supported by in-house metal casting, forging, precision machining, and fabrication for complete piping component supply

OEM, EPC, and export supply — serving industrial buyers, fabrication shops, and plant maintenance teams across India and international markets

Frequently Asked Question

What is a metal pipe elbow used for?

A metal pipe elbow is used to change the direction of flow in an industrial piping system. Pipe elbows connect two pipe sections at a specific angle — typically 45°, 90°, or 180° — allowing pipelines to navigate around equipment, structures, and obstacles while maintaining pressure and flow integrity.

What is the difference between a long radius and short radius pipe elbow?

A long radius (LR) pipe elbow has a bend radius of 1.5 times the nominal pipe diameter. A short radius (SR) elbow has a bend radius equal to the nominal pipe diameter. Long radius elbows produce less pressure drop and turbulence and are the standard for most industrial piping. Short radius elbows are used where space is restricted.

What materials are metal pipe elbows available in?

Sharma Technocast manufactures pipe elbows in carbon steel (ASTM A234 WPB), stainless steel (304, 304L, 316, 316L, 321), alloy steel (WP5, WP9, WP11, WP22, WP91), mild steel, galvanized steel, and aluminum.

What is the maximum pipe elbow size available?

Standard pipe elbows are available from 1/2" NPS to 48" NPS. Large diameter pipe elbows beyond 48" NPS are manufactured as fabricated elbows (miter-welded) or induction bent elbows for pipeline and heavy engineering projects.

What standards do your pipe elbows comply with?

All pipe elbows are manufactured to ASME B16.9 (long radius buttweld fittings), ASME B16.28 (short radius buttweld fittings), MSS SP-75 (high-test wrought fittings), ASTM A234 (carbon and alloy steel), ASTM A403 (stainless steel), and ASTM A420 (low-temperature carbon steel). Additional standards are available on request.

How are metal pipe elbows manufactured?

Pipe elbows are manufactured through mandrel hot forming (standard sizes), induction bending (large diameter pipeline elbows), forging (high-pressure applications), and fabrication/miter welding (very large diameters and non-standard sizes). The manufacturing method is selected based on the pipe size, material, pressure rating, and application.

What is an induction bent pipe elbow?

An induction bent pipe elbow is manufactured by passing straight pipe through an electromagnetic induction heating coil while mechanically bending it to the required radius and angle. This process is preferred for large diameter pipeline applications because it produces precise geometry with minimal wall thinning and distortion.

What is a fabricated pipe elbow?

A fabricated pipe elbow is made by cutting pipe segments at calculated miter angles and welding them together to form the elbow shape. Fabricated elbows are used for very large diameters, non-standard angles, and applications where standard formed or forged fittings are not available.

Can you supply custom pipe elbows?

Yes. Sharma Technocast manufactures custom metal pipe elbows including non-standard angles, non-standard radii, large diameters beyond 48", special wall thicknesses, and material grades not covered by standard specifications. Share your drawing or specification and our team will provide a quotation.

Do you provide test reports and material certificates with pipe elbows?

Yes. Every pipe elbow order includes mill test certificates (MTC EN 10204 3.1), dimensional inspection reports, and applicable test reports including hydrostatic test, PMI, UT, RT, and HIC based on the project specification requirements.
