Description
Features

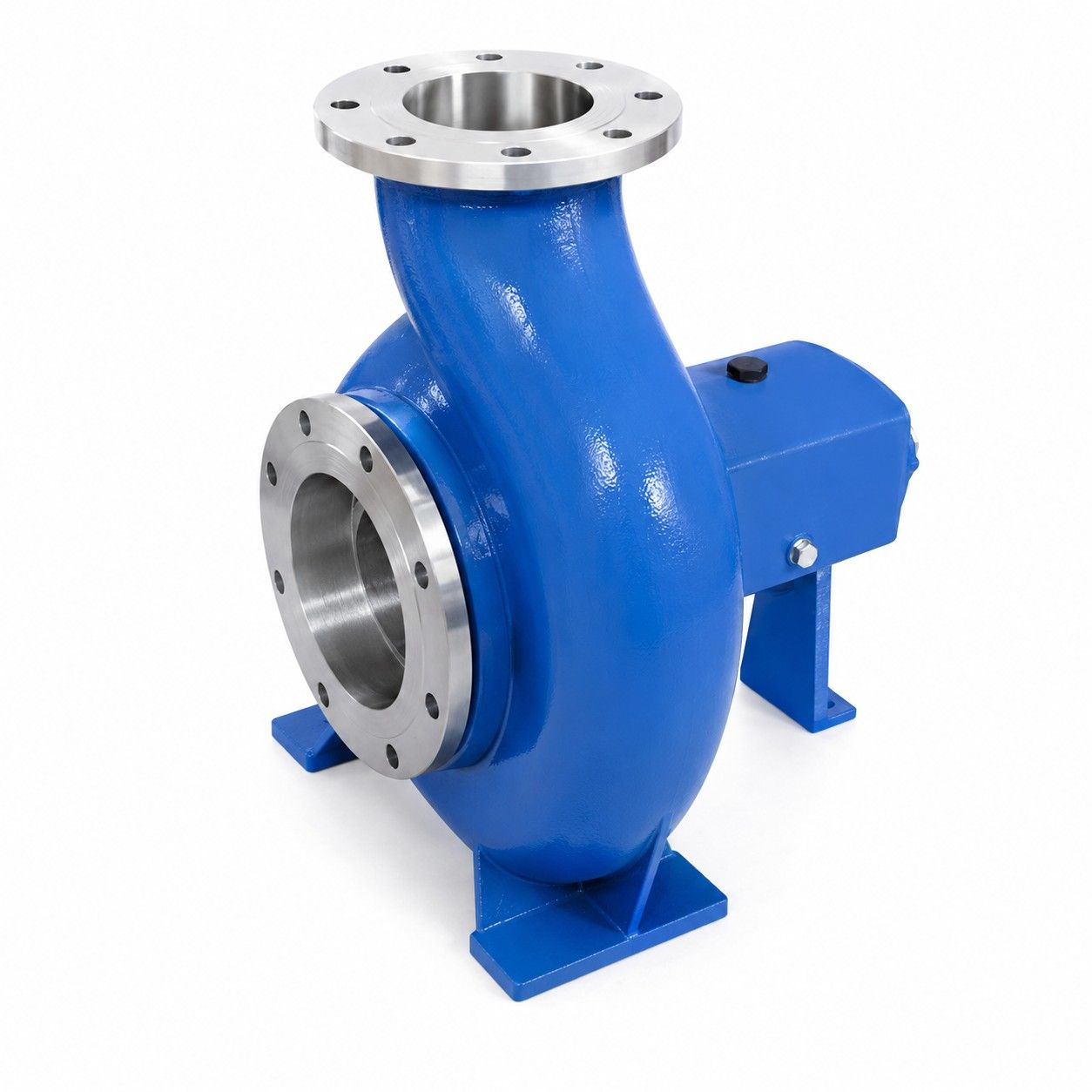

- Single-stage, end-suction, back pull-out design
- Non-clog hydraulic design, passes stock up to 7% consistency
- High capacity, up to 1200 m³/hr for large-volume stock movement
- Service without disturbing casing or pipework
- Conforms to ISO 2858 dimensions; DIN 2543 flanges
- Purpose-built for pulp, paper, and sugar-mill liquor duty
- Handles fibrous stock, liquor, and slurry
- Interchangeable, standardised spares
- Full material range from cast iron to Hastelloy B & C
Materials
- Cast Iron, Cast Steel
- SS-304 / 304L, SS-316 / 316L
- Bronze, Alloy-20
- CD4MCU
- Hastelloy B & C
Operating Range
- Capacity: Up to 1200 m³/hr
- Head: Up to 55 m
- Discharge size: 25 to 300 mm
- Temperature: Up to 250°C
- Speed: Up to 3500 rpm
- Pressure: Up to 5.5 kg/cm²
- Stock consistency: Up to 7%
Applications
- Chest, refiner, fan, and couch-pit pumps in paper mills
- Turbo feed, back-water, and separator pumps
- All liquor applications and stock up to 7% consistency
- Sugar juice, bagasse slurries, and mill sludge
- Palm-oil mills, refineries, and food industries
- Waste-water treatment and starch plants
