Description
Features

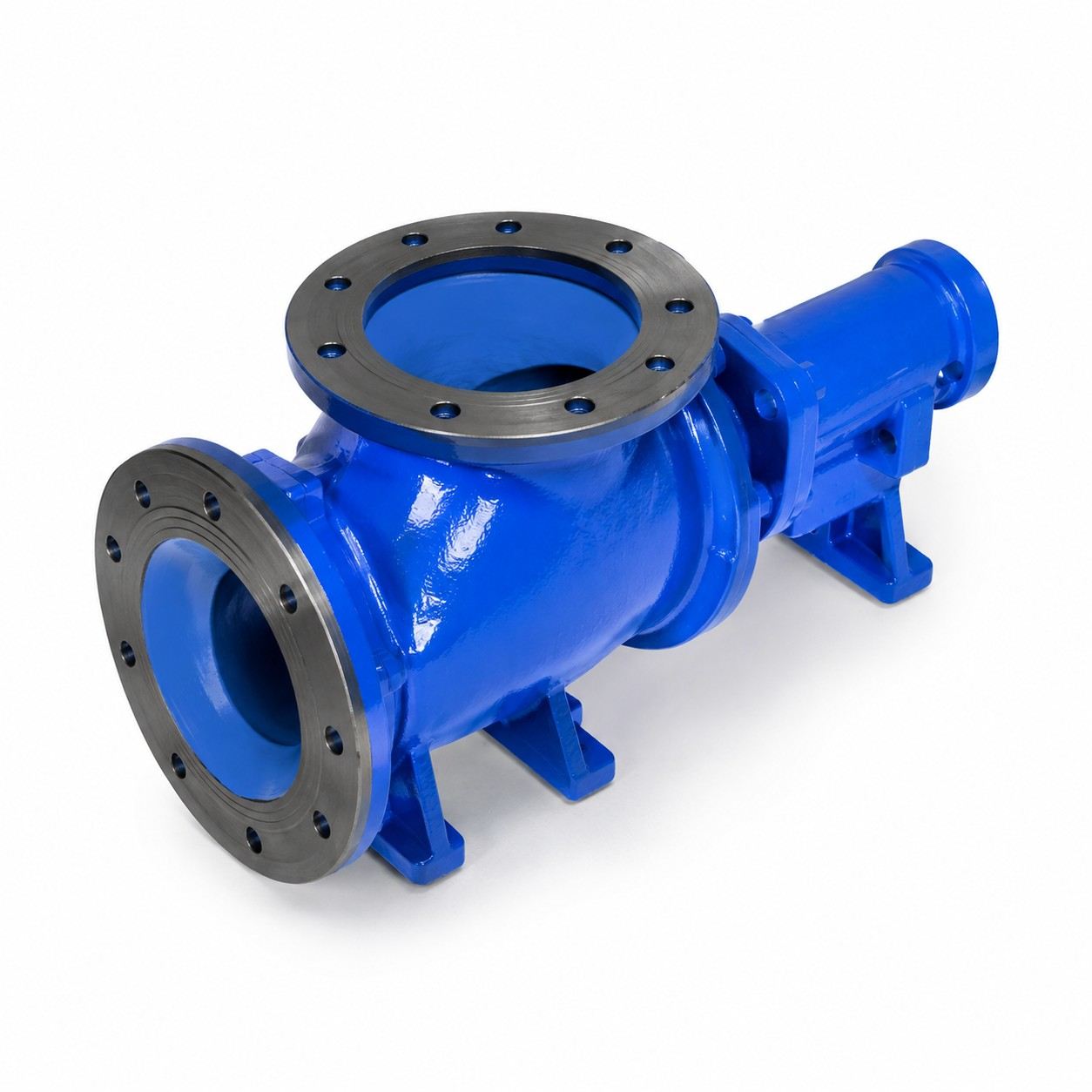

- Horizontal axial flow (propeller-type) pump
- Very high volume at low head
- Highest capacity in the range, up to 14000 m³/hr
- Heavy-duty thick metal at elbow, stuffing box, and impeller for wear life
- Extra-large lubrication oil sump for cooler, longer bearing life
- High-efficiency impeller available in a wide range of vane angles
- Wide temperature range, -40°C to 200°C
- Discharge sizes from 6″ to 36″
- Full material range from cast iron to Hastelloy B & C
Materials
- Cast Iron, Cast Steel
- SS-304 / 304L, SS-316 / 316L
- Bronze, Alloy-20
- CD4MCU
- Hastelloy B & C
Operating Range
- Capacity: Up to 14000 m³/hr
- Head: Up to 8 m
- Discharge size: 6″ to 36″
- Temperature: -40°C to 200°C
- Speed: Up to 3500 rpm
- Pressure: Up to 10 bar
Applications
- Transfer of very large volumes at low head
- Dewatering of large pits and lakes
- Raising the water level in irrigation canals
- Flood control and drainage
- Recirculation in MEE and evaporation plants
- Large-scale water movement in industry and infrastructure
