Description

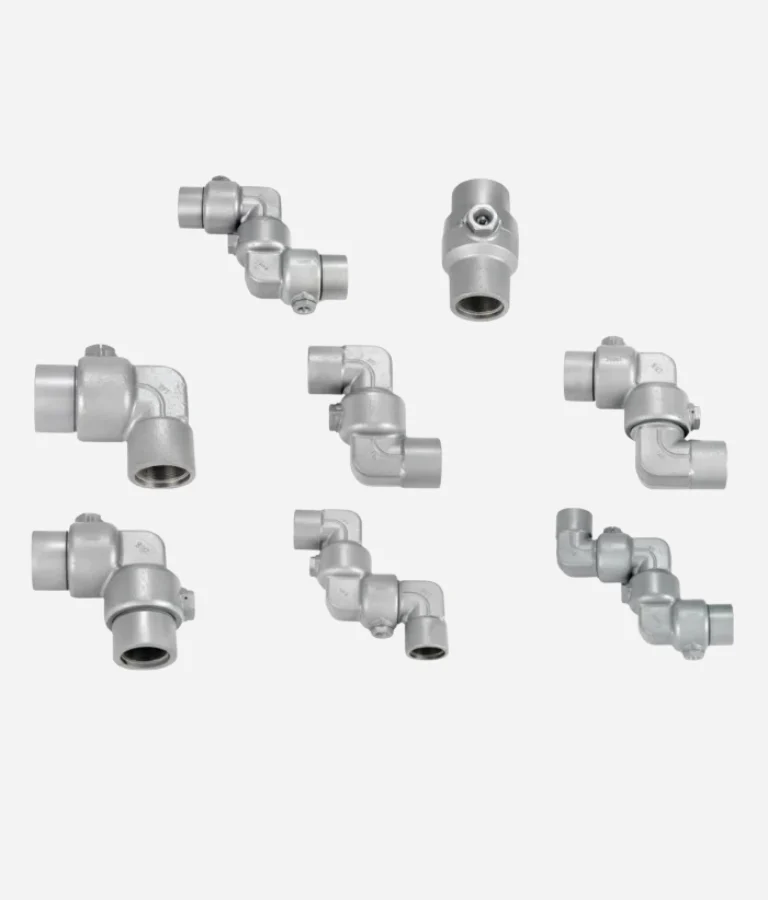

TYA Swivel Joints – Long Radius & Short Radius
TYA offers high-performance 2″ Fig. 1502 and 3″ Fig. 1502 Long Radius Swivel Joints, designed with enhanced engineering for extended service life and uniform high-pressure flow. Manufactured from high-strength alloy steel, these swivel joints are ideal for demanding oilfield and industrial applications.
Design Enhancements & Features:
-
Extra erosion-resistant material under critical ball race locations for longer life.
-
Improved load distribution in 3″ Fig. 1502 series for extended ball race performance.
-
Reinforced female ball care components for superior durability in 2″ and 3″ models.
-
Mismatching risk eliminated for safer, more reliable operations.
-
Uniform wall thickness for consistent flow of fluids, including slurries and abrasives.
-
Advanced elastomeric packing prevents packing from entering the flow stream, regardless of velocity.
-
Optimized lubrication system for smooth, long-lasting performance.
-
Available in traditional hammer union styles for industry compatibility.
Technical Specifications – Short Radius Swivel Joint
| Parameter | Specification |
|---|---|
| Size | 2″ |
| End Type | Customized |
| Cold Working Pressure (CWP) | 6,000 psi (413.68 bar) |
| Test Pressure | 9,000 psi |
| Service | Standard, H₂S |
| Applications | Cementing, Drill Mud, Fracturing Fluids, Well Servicing |
| Documentation | MTR & Test Report Available |
Why Choose TYA Swivel Joints?
-
Built to handle high-pressure operations with maximum reliability.
-
Designed for uniform flow, minimizing erosion and turbulence.
-
Ideal for cementing, fracturing, well servicing, and drilling applications.
-
Manufactured to API-compliant quality standards.
