Description
JIC Hex Nipple ,10000 psi
TYA is the manufacturer of High Pressure JIC Hex Nipple ,10000 psi, 700 Bars. It has JIC Male Connection on both sides .
Standard Material for JIC Hex Nipple,10000 psi is SS 316 but is also available in Carbon Steel, Brass, Hastelloy , Inconel alloys , Monel alloys , Titanium , Super Duplex & Duplex .
Common sizes are 7/16″ JIC Male, 1/2″ JIC Male, 9/16″ JIC Male, 3/4″ JIC Male, 1-1/16 ” JIC Male .
High Pressure Fittings are used in almost all industrial applications where threaded connections are involved . It also used in Hydro testing setup .

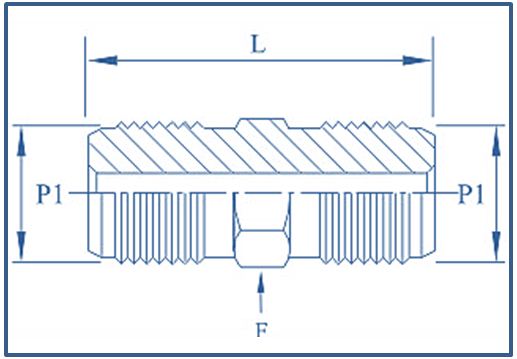

| PART No. | P1 | F | L | |
| JIC 37° MALE | JIC 37° MALE | HEX | ||
| FHPF/10K/HN-JJ/4-41 | 7/16″-20TP | 7/16″-20TP | 9/16″ | 1.37″ |
| FHPF/10K/HN-JJ/5-51 | 1/2″-20TP | 1/2″-20TP | 5/8″ | 1.37″ |
| FHPF/10K/HN-JJ/6-61 | 9/16″-18TP | 9/16″-18TP | 3/4″ | 1.42″ |
| FHPF/10K/HN-JJ/8-81 | 3/4″-16TP | 3/4″-16TP | 7/8″ | 1.62″ |
| FHPF/10K/HN-JJ/10-10I | 7/8″-14TP | 7/8″-14TP | 15/16″ | 1.89″ |
| FHPF/10K/HN-JJ/12-12I | 1-1/16″-12TP | 1-1/16″-12TP | 1-1/8″ | 2.16″ |
| FHPF/10K/HN-JJ/16-16I | 1-5/16″-12TP | 1-5/16″-12TP | 1-1/2″ | 2.25″ |
