Description

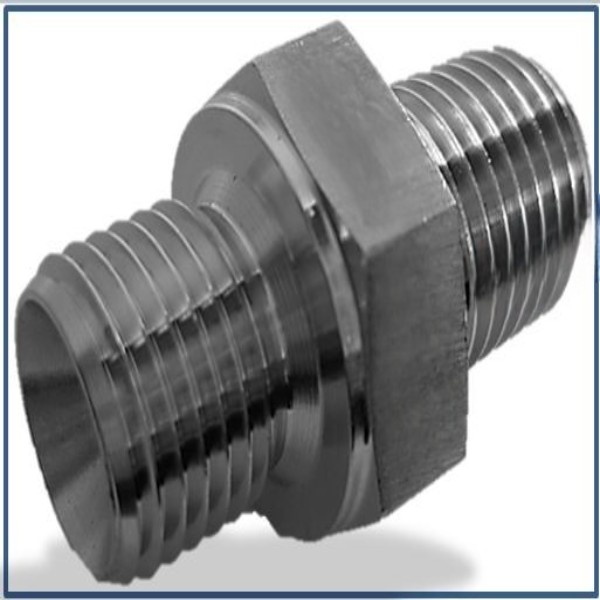

Adaptor JIC Male NPT Male ,10000 psi
Sharma Technocast is the manufacturer of High Pressure Adaptor JIC Male NPT Male ,10000 psi, 700 Bars. It has JIC Male Connection on both sides .
Standard Material for JIC Hex Nipple,10000 psi is SS 316 but is also available in Carbon Steel, Brass, Hastelloy , Inconel alloys , Monel alloys , Titanium , Super Duplex & Duplex .
Common sizes are 1/8″ NPT X 7/16″ JIC, 1/4″ NPT X 1/2″ JIC, 3/8″ NPT X 3/4″ JIC, 1/2″ NPT X 3/4″ JIC,
High Pressure Fittings are used in almost all industrial applications where threaded connections are involved . It also used in Hydro testing setup .

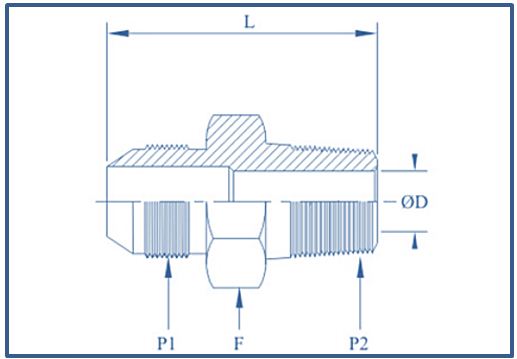

Adaptor JIC Male NPT Male ,10000 psi
| PART No. | P2 | P1 | F | L |
| NPTM | Â JIC 37-MALE | HEX | ||
| FHPF/10K/HN-NJ/2-4I | 1/8″ | 7/16″-20TP | 9/16″ | 1.22″ |
| FHPF/10K/HN-NJ/4-4I | 1/4″ | 7/16″-20TP | 5/8″ | 1.42″ |
| FHPF/10K/HN-NJ/4-5I | 1/4″ | 1/2″-20TP | 5/8″ | 1.42″ |
| FHPF/10K/HN-NJ/4-6I | 1/4″ | 9/16″-18TP | 5/8″ | 1.42″ |
| FHPF/10K/HN-NJ/6-4I | 3/8″ | 7/16″-20TP | 3/4″ | 1.45″ |
| FHPF/10K/HN-NJ/6-6I | 3/8″ | 9/16″-18TP | 3/4″ | 1.42″ |
| FHPF/10K/HN-NJ/6-8I | 3/8″ | 3/4″-16TP | 7/8″ | 1.53″ |
| FHPF/10K/HN-NJ/8-6I | 1/2″ | 9/16″-18TP | 7/8″ | 1.69″ |
| FHPF/10K/HN-NJ/8-8I | 1/2″ | 3/4″-16TP | 7/8″ | 1.81″ |
| FHPF/10K/HN-NJ/8-10I | 1/2″ | 7/8″-14TP | 15/16″ | 1.89″ |
| FHPF/10K/HN-NJ/8-12I | 1/2″ | 1-1/16″-12TP | 1-1/8″ | 2.05″ |
| FHPF/10K/HN-NJ/12-8I | 3/4″ | 3/4″-16TP | 1-1/8″ | 1.85″ |
| FHPF/10K/HN-NJ/12-10I | 3/4″ | 7/8″-14TP | 1-1/8″ | 1.96″ |
| FHPF/10K/HN-NJ/12-12I | 3/4″ | 1-1/16″-12TP | 1-1/8″ | 2.06″ |
| FHPF/10K/HN-NJ/12-16I | 3/4″ | 1-5/16″-12TP | 1-1/2″ | 2.13″ |
| FHPF/10K/HN-NJ/16-12I | 1″ | 1-1/16″-12TP | 1-1/2″ | 2.25″ |
| FHPF/10K/HN-NJ/16-16I | 1″ | 1-5/16″-12TP | 1-1/2″ | 2.30″ |
