45 Deg Elbow
45 Deg Elbow - Image 2
45 Deg Elbow - Image 3

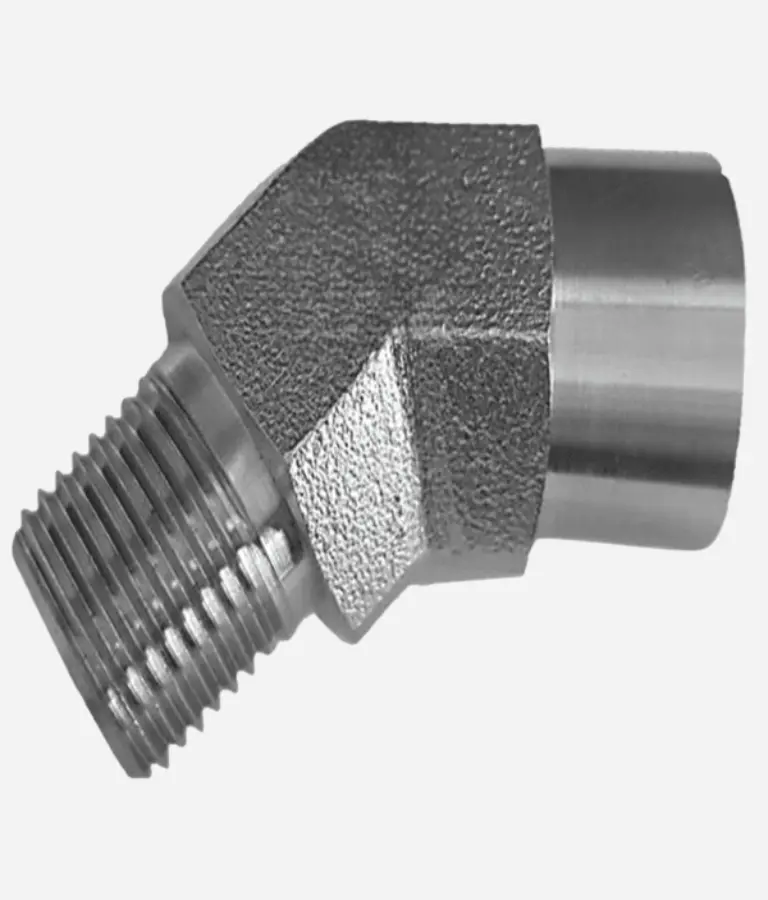

45 Deg Elbow

Sharma Technocast High-Pressure 45° Elbows are precision-engineered fittings designed for reliable fluid flow direction in demanding industrial and hydro testing applications. Manufactured from premium materials including SS 316 and rated up to 10,000 psi (700 bar), these durable elbows ensure secure threaded connections, corrosion resistance, and dependable high-pressure performance.

Get a Quote
Category:

Description

Female

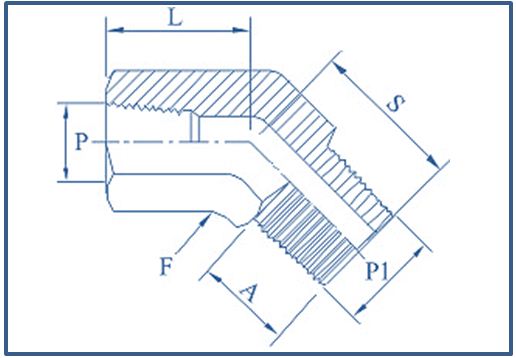

 Sharma Technocast is the manufacturer of High Pressure45 Deg Elbow,10000 psi , 700 Bars. It has NPT Male Connection on one  side and NPT Female Connection on the other side with shape of elbow (L shape)

Standard Material for 45 deg Elbow,10000 psi is SS 316 but is also available in Carbon Steel, Brass, Hastelloy , Inconel alloys , Monel alloys , Titanium , Super Duplex & Duplex.

Common sizes are 1/4″ NPTM X NPTF, 3/8″ NPTM X 3/8″ NPTF ,1/2″ NPTM X NPTF, 3/4″ NPTM X NPTF, 1″NPTM X NPTF

High Pressure Fittings are used in almost all industrial applications where threaded connections are involved . It also used in Hydro testing setup .

PART No. P P1 L S A F
 NPTF  NPTM inch inch Inch HEX
FHPF/10K/45ES/2-2I 1/8 1/8 0.47 0.72 0.38 9/16
FHPF/10K/45ES/4-4I 1/4 1/4 0.63 1.05 0.56 3/4
FHPF/10K/45ES/6-6I 3/8 3/8 0.72 1.06 0.56 7/8
FHPF/10K/45ES/8-8I 1/2 1/2 0.91 1.34 0.75 1-1/16
FHPF/10K/45ES/12-12I 3/4 3/4 0.97 1.38 0.75 1-5/16
FHPF/10K/45ES/16-16I 1 1 1.13 1.13 0.94 1-5/8

Female X Female

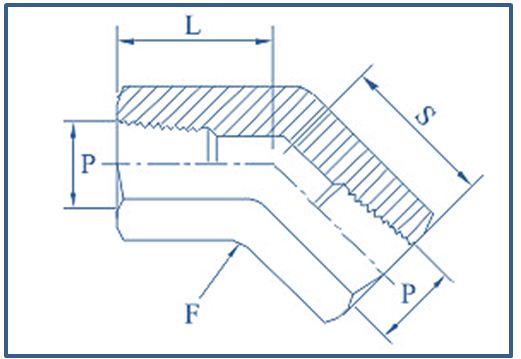

Sharma Technocast is the manufacturer of High Pressure 45 Deg Elbow,10000 psi, 700 Bars. It has NPT Female Connection on both sides with shape of elbow (L shape)

Standard Material for 45 deg Elbow, 10000 psi is SS 316 but is also available in Carbon Steel, Brass, Hastelloy , Inconel alloys , Monel alloys , Titanium , Super Duplex & Duplex.

Common sizes are:1/4″ NPT Female, 3/8″ NPT Female ,1/2″ NPT Female, 3/4″ NPT Female, 1″ NPT Female.

High Pressure Fittings are used in almost all industrial applications where threaded connections are involved . It also used in Hydro testing setup .

PART No. P L S F
 NPTF  inch  inch HEX
FHPF/10K/45EF/2-2I 1/8 0.47 0.47 9/16
FHPF/10K/45EF/4I 1/4 0.69 0.69 3/4
FHPF/10K/45EF/6I 3/8 0.75 0.75 7/8
FHPF/10K/45EF/8I 1/2 0.94 0.94 1-1/16
FHPF/10K/45EF/12I 3/4 1.00 1.00 1-5/16
FHPF/10K/45EF/16I 1 1.19 1.19 1-5/8

Related Products

  • Shop Primary Image

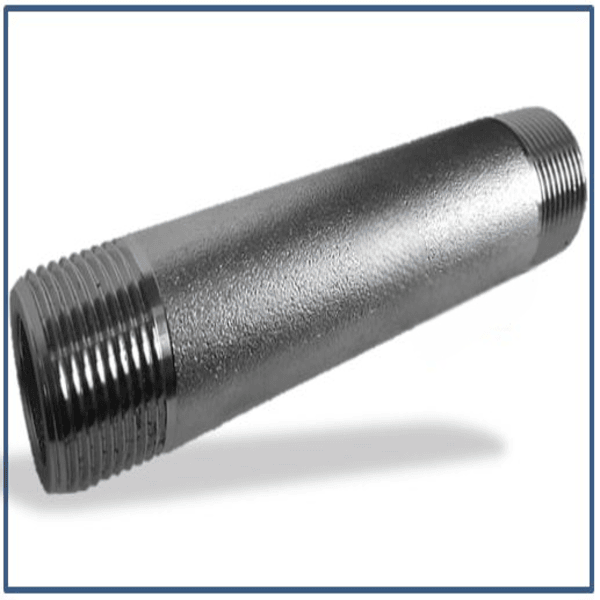

    Barrel Nipple,10000 psi

    Sharma Technocast High-Pressure Barrel Nipples are precision-engineered fittings designed for secure fluid transfer and reliable threaded connections in demanding industrial systems. Manufactured from premium SS 316 and other high-performance alloys, these durable barrel nipples are rated up to 10,000 psi (700 bar) and provide excellent corrosion resistance, leak-free performance, and long service life in hydraulic, instrumentation, and hydro testing applications.

  • Shop Primary Image
    Pipe Cap,10000 psi

    Sharma Technocast High-Pressure Pipe Caps are precision-engineered threaded fittings designed to securely seal NPT female pipe connections in demanding industrial systems. Rated up to 10,000 psi (700 bar), these durable caps provide reliable leak-free sealing, excellent corrosion resistance, and dependable performance in hydraulic and hydro testing applications.

  • Shop Primary Image

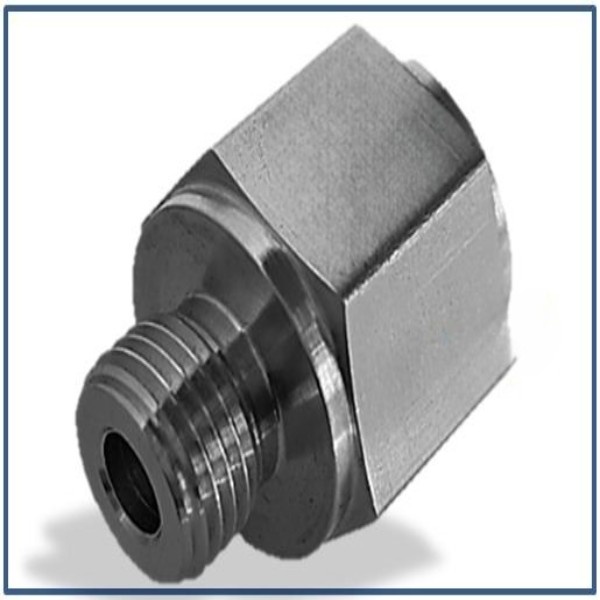

    Long Adaptor ,10000 psi
