Sharma Technocast is the manufacturer of High Pressure45 Deg Elbow,10000 psi , 700 Bars. It has NPT Male Connection on one side and NPT Female Connection on the other side with shape of elbow (L shape)
Standard Material for 45 deg Elbow,10000 psi is SS 316 but is also available in Carbon Steel, Brass, Hastelloy , Inconel alloys , Monel alloys , Titanium , Super Duplex & Duplex.
Common sizes are 1/4" NPTM X NPTF, 3/8" NPTM X 3/8" NPTF ,1/2" NPTM X NPTF, 3/4" NPTM X NPTF, 1"NPTM X NPTF
High Pressure Fittings are used in almost all industrial applications where threaded connections are involved . It also used in Hydro testing setup .

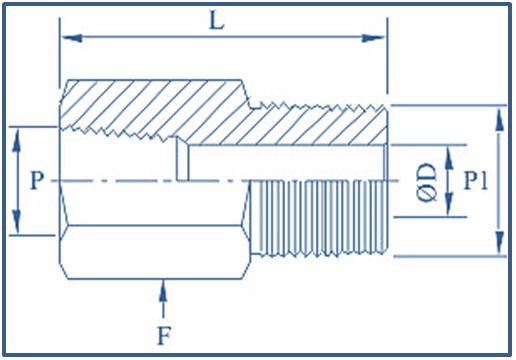

| PART No. |
P |
P1 |
L |
S |
A |
F |
| NPTF |
NPTM |
inch |
inch |
Inch |
HEX |
| FHPF/10K/45ES/2-2I |
1/8 |
1/8 |
0.47 |
0.72 |
0.38 |
9/16 |
| FHPF/10K/45ES/4-4I |
1/4 |
1/4 |
0.63 |
1.05 |
0.56 |
3/4 |
| FHPF/10K/45ES/6-6I |
3/8 |
3/8 |
0.72 |
1.06 |
0.56 |
7/8 |
| FHPF/10K/45ES/8-8I |
1/2 |
1/2 |
0.91 |
1.34 |
0.75 |
1-1/16 |
| FHPF/10K/45ES/12-12I |
3/4 |
3/4 |
0.97 |
1.38 |
0.75 |
1-5/16 |
| FHPF/10K/45ES/16-16I |
1 |
1 |
1.13 |
1.13 |
0.94 |
1-5/8 |
