HomeDouble Ferrule Compression FittingsCap
Cap

Cap

Get a Quote
Category:

Related Products

  • Shop Primary Image
    Straight Union


    UNION in OD Tube Imperial (inches)

    0D1 Imperial 0D F Hex A Inch L Inch H mm
    1/16 0.05 5/16 0.34 0.99 19.7
    1/8 0.09 7/16 0.5 1.4 26.1
    3/16 0.12 7/16 0.54 1.47 26.1
    1/4 0.19 1/2 0.6 1.61 27.1
    5/16 0.25 9/16 0.64 1.69 30.3
    3/8 0.28 5/8 0.66 1.77 30.3
    1/2 0.41 13/16 0.9 2.02 31.5
    5/8 0.5 15/16 0.96 2.05 31.5
    3/4 0.62 1-1/16 0.96 2.11 32.5
    7/8 0.72 1-3/16 1.02 2.17 35.9
    1 0.88 1-3/8 1.23 2.55 40.9
    1-1/4 1.04 1-7/8 1.62 3.63 48
    1-1/2 1.34 2-1/4 1.97 4.25 53.6
    2 1.81 3 2.66 5.88 74.7

    UNION in OD Tube metric (mm)

    0D1 Metric 0D F Hex A mm L mm H mm
    2 1.7 10 12.9 35.6 26.6
    3 2.4 10 12.9 353 26.6
    4 2.4 10 13.7 37.3 27.6
    6 4.8 13 41 41 27.6
    8 6.4 14 43.2 43.2 30.8
    10 7.9 17 46.2 46.2 31
    12 9.5 20.5 51.2 51.2 32
    14 11 24 52 52 32.8
    15 11.9 24 52 52 0 32.8
    16 12.7 24 52 52 32.8
    18 15.1 27 53.5 53.5 33.3
    20 15.9 30 55 55 35
    22 18.3 30 55 55 36.4
    25 21.8 35 65 65 41.4
    28 21.8 46 85 85 43.4
    30 26.2 50 92.7 92.7 43.4
    32 28.6 50 97.3 97.3 51.8
    38 33.7 60 113.6 113.6 58.4
    50 45.2 75 145.8 145.8 145.8
      Some Common Sizes for SS 316 Straight Union are 1.TYA SS 316 Straight Union 1/8” OD 2.TYA SS 316 Straight Union 1/4” OD 3.TYA SS 316 Straight Union 3/8” OD 4.TYA SS 316 Straight Union 1/2” OD 5.TYA SS 316 Straight Union 3/4” OD 6.TYA SS 316 Straight Union 1” OD 7.TYA SS 316 Straight Union 6mm OD 8.TYA SS 316 Straight Union 8mm OD 9.TYA SS 316 Straight Union 10mm OD 10.TYA SS 316 Straight Union 12mm OD
  • Shop Primary Image

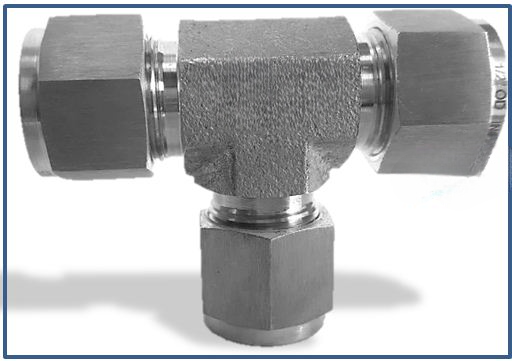

    Tee Union

    UNION TEE (OD Tube Imperial)

    0D1 Imperial 0D F Hex A Inch L Inch H mm
    1/16 0.05 1/2 0.34 1.4 14
    1/8 0.09 1/2 0.5 1.76 15.74
    3/16 0.12 1/2 0.54 1.92 17.78
    1/4 0.19 1/2 0.6 2.12 19.55
    5/16 0.25 5/8 0.64 2.34 21.33
    3/8 28 5/8 0.66 2.4 23.11
    1/2 0.41 13/16 0.9 2.84 25.9
    5/8 0.5 1 0.96 3.06 28.7
    3/4 0.62 1-1/16 0.96 3.14 29.71
    7/8 0.72 1-1/4 1.02 3.52 34.54
    1 0.88 1-3/8 1.23 3.86 36.83
    1-1/4 1.09 1-11/16 1.62 5.34 44.5
    1-1/2 1.34 2 1.97 6.2 50.8
    2 1.81 2-3/4 2.66 8.44 69.8
      UNION TEE (OD Tube Metric)
    0D1 Metric 0D F Hex A mm L mm H mm
    2 1.7 9.5 12.9 44.7 15.7
    3 2.4 9.5 12.9 44.7 15.7
    4 2.4 12.7 13.7 50.8 18.8
    6 4.8 12.7 15.3 53.9 19.6
    8 6.4 14.2 16.2 59.7 21.3
    10 7.9 17.5 17.2 63 23.9
    12 9.5 20.6 22.8 72 25.9
    14 11.1 25.44 24.4 77.6 28.7
    15 11.9 25.44 24.4 77.6 28.7
    16 12.7 25.44 24.4 77.6 28.7
    18 15.1 26.98 24.4 79.6 29.7
    20 15.9 30 26 89.3 32.5
    22 18.3 30 26 89.3 32.5
    25 21.8 36 31.3 98.3 36.8
    28 21.8 42 36.6 128,0 43.2
    30 26.2 46 39 139.7 43.2
    32 28.6 46 42 144.6 49.3
    38 33.7 55 49.4 168 56.4
    50 45,2 68.85 65 211.3 69.8
      Some Common Sizes for SS 316 Tee Union are 1.TYA SS 316 Tee Unions 1/8” OD 2.TYA SS 316 Tee Unions 1/4” OD 3.TYA SS 316 Tee Unions 3/8” OD 4.TYA SS 316 Tee Unions 1/2” OD 5.TYA SS 316 Tee Unions 3/4” OD 6.TYA SS 316 Tee Unions 1” OD 7.TYA SS 316 Tee Unions 6mm OD 8.TYA SS 316 Tee Unions 8mm OD 9.TYA SS 316 Tee Unions 10mm OD 10.TYA SS 316 Tee Unions 12mm OD 11.TYA SS 316 Tee Unions 14mm OD 12.TYA SS 316 Tee Unions 16mm OD
  • Shop Primary Image
    Male Run Tee
  • Shop Primary Image
    Male Connector Port
