    Straight Union


    UNION in OD Tube Imperial (inches)

    0D1 Imperial 0D F Hex A Inch L Inch H mm
    1/16 0.05 5/16 0.34 0.99 19.7
    1/8 0.09 7/16 0.5 1.4 26.1
    3/16 0.12 7/16 0.54 1.47 26.1
    1/4 0.19 1/2 0.6 1.61 27.1
    5/16 0.25 9/16 0.64 1.69 30.3
    3/8 0.28 5/8 0.66 1.77 30.3
    1/2 0.41 13/16 0.9 2.02 31.5
    5/8 0.5 15/16 0.96 2.05 31.5
    3/4 0.62 1-1/16 0.96 2.11 32.5
    7/8 0.72 1-3/16 1.02 2.17 35.9
    1 0.88 1-3/8 1.23 2.55 40.9
    1-1/4 1.04 1-7/8 1.62 3.63 48
    1-1/2 1.34 2-1/4 1.97 4.25 53.6
    2 1.81 3 2.66 5.88 74.7

    UNION in OD Tube metric (mm)

    0D1 Metric 0D F Hex A mm L mm H mm
    2 1.7 10 12.9 35.6 26.6
    3 2.4 10 12.9 353 26.6
    4 2.4 10 13.7 37.3 27.6
    6 4.8 13 41 41 27.6
    8 6.4 14 43.2 43.2 30.8
    10 7.9 17 46.2 46.2 31
    12 9.5 20.5 51.2 51.2 32
    14 11 24 52 52 32.8
    15 11.9 24 52 52 0 32.8
    16 12.7 24 52 52 32.8
    18 15.1 27 53.5 53.5 33.3
    20 15.9 30 55 55 35
    22 18.3 30 55 55 36.4
    25 21.8 35 65 65 41.4
    28 21.8 46 85 85 43.4
    30 26.2 50 92.7 92.7 43.4
    32 28.6 50 97.3 97.3 51.8
    38 33.7 60 113.6 113.6 58.4
    50 45.2 75 145.8 145.8 145.8
      Some Common Sizes for SS 316 Straight Union are 1.TYA SS 316 Straight Union 1/8” OD 2.TYA SS 316 Straight Union 1/4” OD 3.TYA SS 316 Straight Union 3/8” OD 4.TYA SS 316 Straight Union 1/2” OD 5.TYA SS 316 Straight Union 3/4” OD 6.TYA SS 316 Straight Union 1” OD 7.TYA SS 316 Straight Union 6mm OD 8.TYA SS 316 Straight Union 8mm OD 9.TYA SS 316 Straight Union 10mm OD 10.TYA SS 316 Straight Union 12mm OD
  • Shop Primary Image
    Swivel Adaptor BSP Male X Female 10000 psi
    TYA is the manufacturer of Swivel Adaptor BSP Male X Female as part of High Pressure Fittings and Valves 10000 psi, 700 Bars. Some Common Sizes for Swivel Adaptor BSP Male X BSP Female 10000 psi are, 1.TYA SS 316 Adaptor 1/4" BSP Male x 1/4"  BSP Female Swl, 10000psi 2.TYA SS 316 Adaptor 3/8" BSP Male x 3/8" BSP Female Swl, 10000psi 3.TYA SS 316 Adaptor 1/2" BSP Male x 1/2" BSP Female Swl, 10000psi 4.TYA SS 316 Adaptor 3/4" BSP Male x 3/4" BSP Female Swl, 10000psi 5.TYA SS 316 Adaptor 1" BSP Male x 1" BSP Female Swl, 10000psi
  • Shop Primary Image

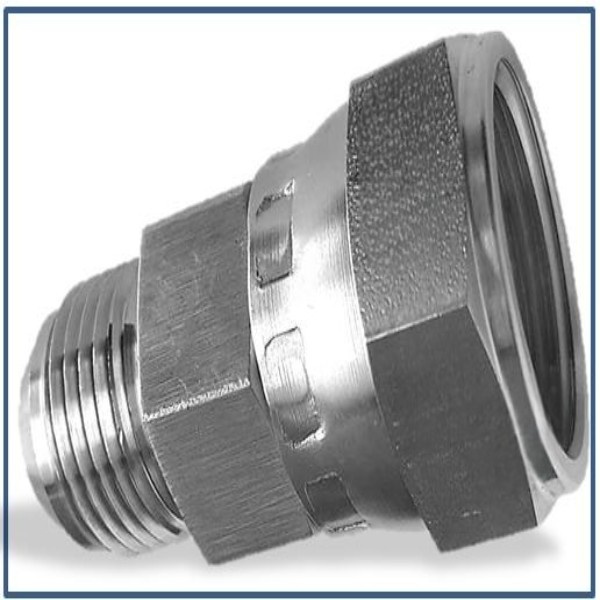

    Swivel Adaptor JIC Male X Female
    TYA is the manufacturer of Swivel Adaptor JIC Male X Female as part of High Pressure Fittings and Valves 10000 psi, 700 Bars. Some Common Sizes for Swivel Adaptor JIC Male X Female 10000 psi are, 1.TYA SS 316 Adaptor 1/4" JIC Male x 1/4" JIC Female Swl, 10000 Psi 2.TYA SS 316 Adaptor 3/8" JIC Male x 3/8" JIC Female Swl, 10000 Psi 3.TYA SS 316 Adaptor 1/2" JIC Male x 1/2" JIC Female Swl, 10000 Psi 4.TYA SS 316 Adaptor 3/4" JIC Male x 3/4" JIC Female Swl, 10000 Psi 5.TYA SS 316 Adaptor 1" JIC Male  x 1" JIC Female Swl, 10000 Psi
  • Shop Primary Image
    Swivel Adaptor with NPT ,BSP ,JIC Connections in 10000 psi
    TYA is the manufacturer of Swivel Adaptor with NPT, BSP, JIC Connections as part of High Pressure Fittings and Valves 10000 psi, 700 Bars. Some Common Sizes for Swivel Adaptor JIC Female x JIC Female Swivel 10000 psi are, 1.TYA SS 316 Swivel Adaptor 1/4" JIC Female x 1/4" JIC  Female Swivel, 10000psi 2.TYA SS 316 Swivel Adaptor 3/8" JIC Female x 3/8" JIC  Female Swivel, 10000psi 3.TYA SS 316 Swivel Adaptor 1/2" JIC Female Swivel x 1/2" JIC Female Swivel, 10000psi 4.TYA SS 316 Swivel Adaptor 3/4" JIC Female Swivel x 3/4" JIC Female Swivel, 10000psi 5.TYA SS 316 Swivel Adaptor 1" JIC Female Swivel x 1" JIC Female Swivel, 10000psi 6.TYA SS 316 Swivel Adaptor 4 JIC Female Swivel x 4 JIC Female Swivel, 10000psi 7.TYA SS 316 Swivel Adaptor 6 JIC Female Swivel x 6 JIC Female Swivel, 10000psi 8.TYA SS 316 Swivel Adaptor 8 JIC Female Swivel x 8 JIC  Female Swivel, 10000psi 9.TYA SS 316 Swivel Adaptor 12 JIC Female Swivel x 12  JIC Female Swivel, 10000psi
  • Shop Primary Image

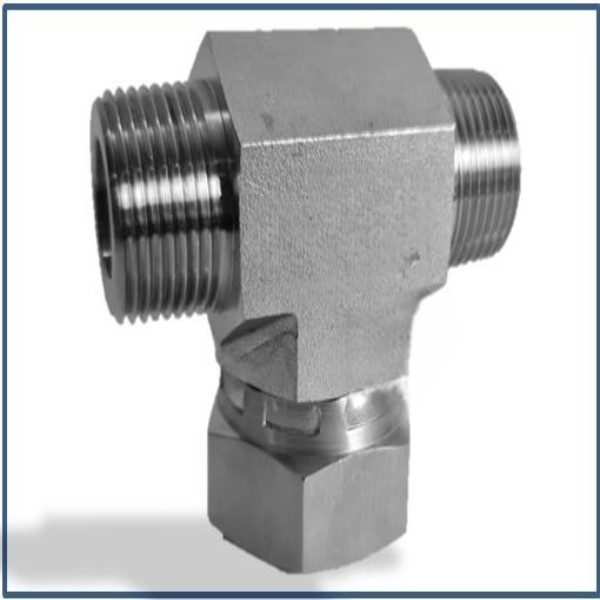

    Swivel Branch Tee NPTM x Female Swivel 10000 Psi
    TYA is the manufacturer of Swivel Branch Tee as part of High Pressure Fittings and Valves Click here for Duplex & Super Duplex Fittings & Valves Some Common Sizes Swivel Branch Tee NPTM x Female Swivel are, 1.TYA SS 316, Swivel Branch Tee  1/4” Female Swivel (center) X 1/4” NPTM X 1/4” NPTM 2.TYA SS 316, Swivel Branch Tee  1/2” Female Swivel (center) X 1/2” NPTM X 1/2” NPTM 3.TYA SS 316, Swivel Branch Tee  3/4” Female Swivel (center) X 3/4” NPTM X 3/4” NPTM 4.TYA SS 316, Swivel Branch Tee  1” Female Swivel (center) X 1” NPTM X 1” NPTM
  • Shop Primary Image

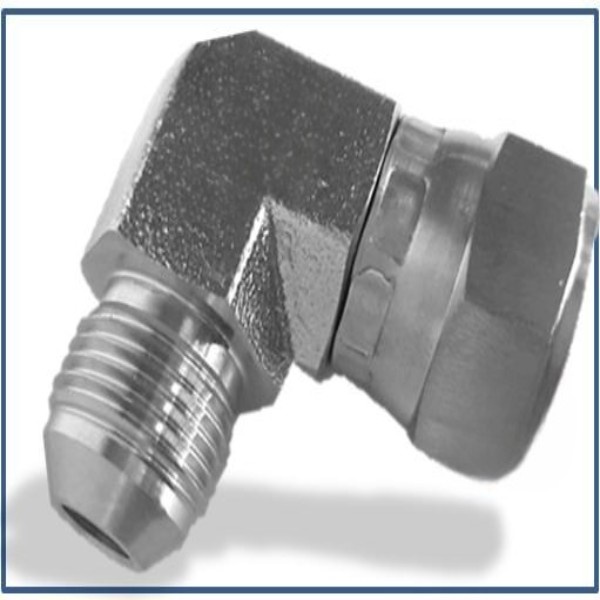

    Swivel Elbow with NPT ,BSP ,JIC Connections in 10000 psi
    Swivel Elbow with NPT ,BSP ,JIC Connections in 10000 psi, TYA is the manufacturer of Swivel Elbow JIC Male X JIC  Female as part of High Pressure Fittings and Valves 10000 psi, 700 Bars. Some Common Sizes for Swivel Elbow JIC Male X JIC  Female 10000 psi are, 1.TYA SS 316 Elbow 1/4" JIC Male x 1/4" JIC  Female Swivel, 10000psi 2.TYA SS 316 Elbow 3/8" JIC Male x 3/8" JIC  Female Swivel, 10000psi 3.TYA SS 316 Elbow 1/2" JIC Male x 1/2" JIC Female Swivel, 10000psi 4.TYA SS 316 Elbow 3/4" JIC Male x 3/4" JIC Female Swivel, 10000psi 5.TYA SS 316 Elbow 1" JIC Male x 1" JIC Female Swivel, 10000psi 6.TYA SS 316 Elbow 4 JIC Male x 4 JIC Female Swivel, 10000psi 7.TYA SS 316 Elbow 6 JIC Male x 6 JIC Female Swivel, 10000psi 8.TYA SS 316 Elbow 8 JIC Male x 8 JIC  Female Swivel, 10000psi 9.TYA SS 316 Elbow 12 JIC Male x 12 JIC Female Swivel, 10000psi
  • Shop Primary Image

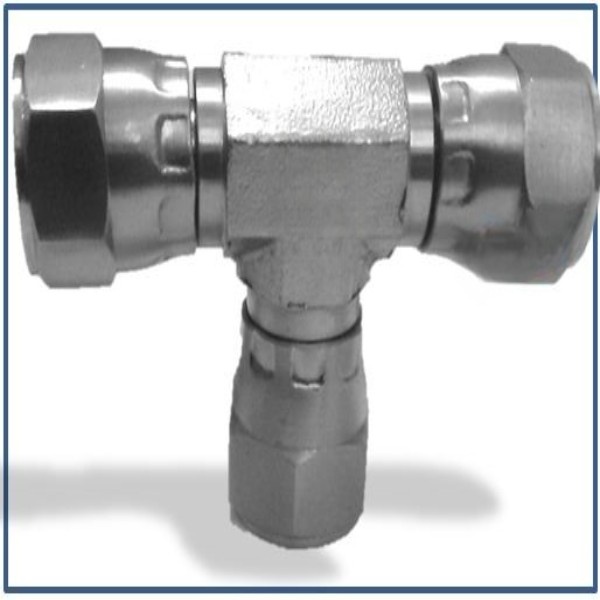

    Swivel Tee with NPT ,BSP ,JIC Connections in 10000 psi
    Swivel Tee with NPT ,BSP ,JIC Connections in 10000 psiTYA is the manufacturer of Swivel Tee, as part of High Pressure Fittings and Valves 10000 psi, 700 Bars. Some Common Sizes for Swivel Tee,10000 psi are, 1.TYA SS 316 Swivel Tee 1/4" OD 10000psi 2.TYA SS 316 Swivel Tee 3/8" OD 10000psi 3.TYA SS 316 Swivel Tee 1/2" OD 10000psi 4.TYA SS 316 Swivel Tee 3/4" OD 10000psi 5.TYA SS 316 Swivel Tee 1" OD 10000psi
  • Shop Primary Image
    Tee Union

    UNION TEE (OD Tube Imperial)

    0D1 Imperial 0D F Hex A Inch L Inch H mm
    1/16 0.05 1/2 0.34 1.4 14
    1/8 0.09 1/2 0.5 1.76 15.74
    3/16 0.12 1/2 0.54 1.92 17.78
    1/4 0.19 1/2 0.6 2.12 19.55
    5/16 0.25 5/8 0.64 2.34 21.33
    3/8 28 5/8 0.66 2.4 23.11
    1/2 0.41 13/16 0.9 2.84 25.9
    5/8 0.5 1 0.96 3.06 28.7
    3/4 0.62 1-1/16 0.96 3.14 29.71
    7/8 0.72 1-1/4 1.02 3.52 34.54
    1 0.88 1-3/8 1.23 3.86 36.83
    1-1/4 1.09 1-11/16 1.62 5.34 44.5
    1-1/2 1.34 2 1.97 6.2 50.8
    2 1.81 2-3/4 2.66 8.44 69.8
      UNION TEE (OD Tube Metric)
    0D1 Metric 0D F Hex A mm L mm H mm
    2 1.7 9.5 12.9 44.7 15.7
    3 2.4 9.5 12.9 44.7 15.7
    4 2.4 12.7 13.7 50.8 18.8
    6 4.8 12.7 15.3 53.9 19.6
    8 6.4 14.2 16.2 59.7 21.3
    10 7.9 17.5 17.2 63 23.9
    12 9.5 20.6 22.8 72 25.9
    14 11.1 25.44 24.4 77.6 28.7
    15 11.9 25.44 24.4 77.6 28.7
    16 12.7 25.44 24.4 77.6 28.7
    18 15.1 26.98 24.4 79.6 29.7
    20 15.9 30 26 89.3 32.5
    22 18.3 30 26 89.3 32.5
    25 21.8 36 31.3 98.3 36.8
    28 21.8 42 36.6 128,0 43.2
    30 26.2 46 39 139.7 43.2
    32 28.6 46 42 144.6 49.3
    38 33.7 55 49.4 168 56.4
    50 45,2 68.85 65 211.3 69.8
      Some Common Sizes for SS 316 Tee Union are 1.TYA SS 316 Tee Unions 1/8” OD 2.TYA SS 316 Tee Unions 1/4” OD 3.TYA SS 316 Tee Unions 3/8” OD 4.TYA SS 316 Tee Unions 1/2” OD 5.TYA SS 316 Tee Unions 3/4” OD 6.TYA SS 316 Tee Unions 1” OD 7.TYA SS 316 Tee Unions 6mm OD 8.TYA SS 316 Tee Unions 8mm OD 9.TYA SS 316 Tee Unions 10mm OD 10.TYA SS 316 Tee Unions 12mm OD 11.TYA SS 316 Tee Unions 14mm OD 12.TYA SS 316 Tee Unions 16mm OD
  • Shop Primary Image
    Tee,10000 psi
    TYA is the manufacturer of High Pressure Female Tee in 10000 psi , 700 Bars. It has NPT Female Connection on all sides with shape of Tee (T shape) Standard Material for Female Tee,10000 psi is SS 316 but is also available in Carbon Steel, Brass, Hastelloy , Inconel alloys , Monel alloys , Titanium , Super Duplex & Duplex . Common sizes are 1/8" NPT Female, 1/4" NPT Female , 3/8" NPT Female , 1/2" NPT Female. High Pressure Fittings are used in almost all industrial applications where threaded connections are involved . It also used in Hydro testing setup .
    PART No. P NPTF L S C
    FHPF/10K/FT/2I 1/8" 1.50" 1.12" 0.75"
    FHPF/10K/FT/4I 1/4" 2.00" 1.50" 1.00"
    FHPF/10K/FT/6I 3/8" 2.25" 1.95" 1.25"
    FHPF/10K/FT/8I 1/2" 2.50" 2.00" 1.50"
View Next Page >>
