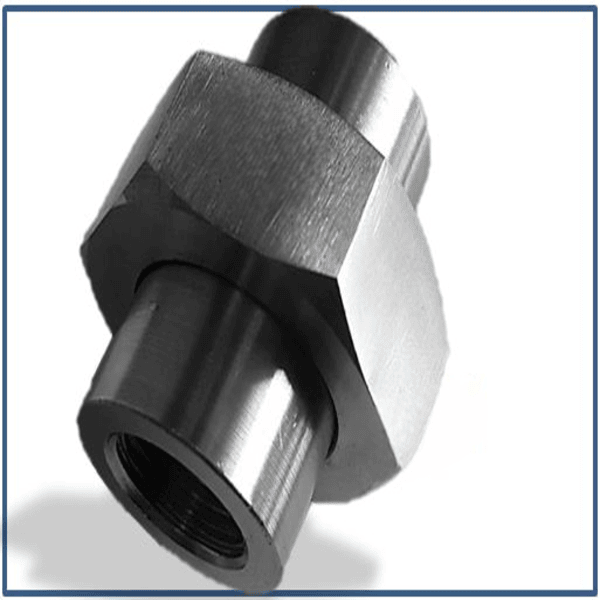

    3 Piece Coupling,10000 psi
    3 Piece Coupling 10000 psi TYA is the manufacturer of 3 Piece Couplings, as part of High Pressure Fittings and Valves 10000 psi, 700 bar. Some Common Sizes for 3 Piece Couplings 10000 psi are, 1.TYA SS 316, Coupling 1/4″ NPTF  x 1/4″ NPTF, 10000psi 2.TYA SS 316, Three Pc Couplings 3/8″ NPTF  x 3/8″ NPTF, 10000psi 3.TYA SS 316, Union 1/2″ NPTF  x 1/2″ NPTF, 10000psi 4.TYA SS 316, Three Pc Couplings 3/4″ NPTF  x 3/4″” NPTF, 10000psi 5.TYA SS 316, Union 1″ NPTF  x 1” NPTF, 10000psi
  • Shop Primary Image

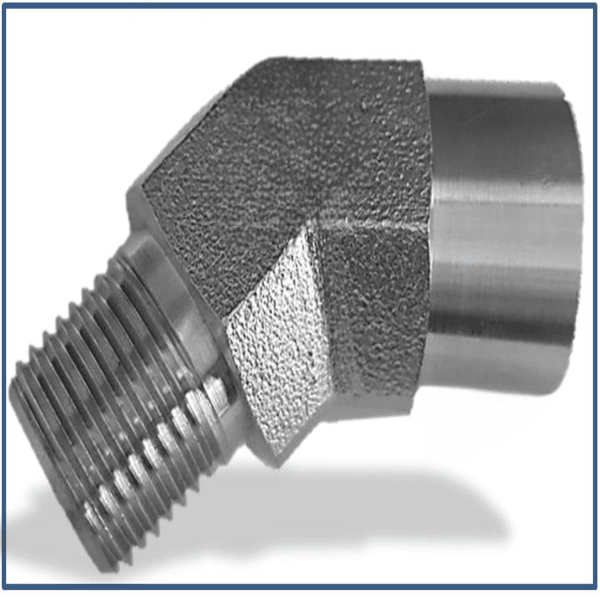

    45 Deg Elbow

    Female

    TYA is the manufacturer of High Pressure45 Deg Elbow,10000 psi , 700 Bars. It has NPT Male Connection on one  side and NPT Female Connection on the other side with shape of elbow (L shape) Standard Material for 45 deg Elbow,10000 psi is SS 316 but is also available in Carbon Steel, Brass, Hastelloy , Inconel alloys , Monel alloys , Titanium , Super Duplex & Duplex. Common sizes are 1/4" NPTM X NPTF, 3/8" NPTM X 3/8" NPTF ,1/2" NPTM X NPTF, 3/4" NPTM X NPTF, 1"NPTM X NPTF High Pressure Fittings are used in almost all industrial applications where threaded connections are involved . It also used in Hydro testing setup .
    PART No. P P1 L S A F
     NPTF  NPTM inch inch Inch HEX
    FHPF/10K/45ES/2-2I 1/8 1/8 0.47 0.72 0.38 9/16
    FHPF/10K/45ES/4-4I 1/4 1/4 0.63 1.05 0.56 3/4
    FHPF/10K/45ES/6-6I 3/8 3/8 0.72 1.06 0.56 7/8
    FHPF/10K/45ES/8-8I 1/2 1/2 0.91 1.34 0.75 1-1/16
    FHPF/10K/45ES/12-12I 3/4 3/4 0.97 1.38 0.75 1-5/16
    FHPF/10K/45ES/16-16I 1 1 1.13 1.13 0.94 1-5/8

    Female X Female

    TYA is the manufacturer of High Pressure 45 Deg Elbow,10000 psi, 700 Bars. It has NPT Female Connection on both sides with shape of elbow (L shape) Standard Material for 45 deg Elbow, 10000 psi is SS 316 but is also available in Carbon Steel, Brass, Hastelloy , Inconel alloys , Monel alloys , Titanium , Super Duplex & Duplex. Common sizes are:1/4" NPT Female, 3/8" NPT Female ,1/2" NPT Female, 3/4" NPT Female, 1" NPT Female. High Pressure Fittings are used in almost all industrial applications where threaded connections are involved . It also used in Hydro testing setup .
    PART No. P L S F
     NPTF  inch  inch HEX
    FHPF/10K/45EF/2-2I 1/8 0.47 0.47 9/16
    FHPF/10K/45EF/4I 1/4 0.69 0.69 3/4
    FHPF/10K/45EF/6I 3/8 0.75 0.75 7/8
    FHPF/10K/45EF/8I 1/2 0.94 0.94 1-1/16
    FHPF/10K/45EF/12I 3/4 1.00 1.00 1-5/16
    FHPF/10K/45EF/16I 1 1.19 1.19 1-5/8
  • Shop Primary Image

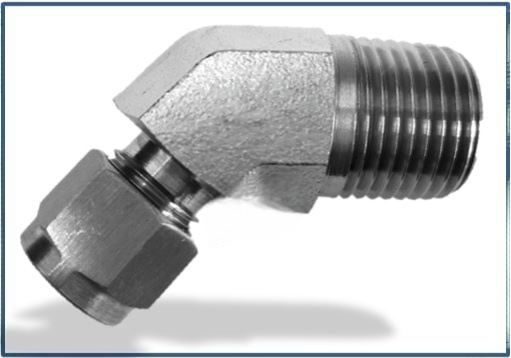

    45-deg-Elbow-Connector

    Elbow Connector (OD Tube Imperial(Inches) X NPT Male Pipe Thread)

    OD1 Imperial P1 NPTM OD F Hex A inch L inch H mm
    1/16 1/16 0.05 5/16 0.34 0.94 20
    1/16 1/8 0.05 7/16 0.34 1.03 22.35
    1/16 1/4 0.05 9/16 0.34 1.22 27.17
    1/8 1/16 0.09 7/16 0.5 1.17 23.11
    1/8 1/8 0.09 7/16 0.5 1.2 23.87
    1/8 1/4 0.09 9/16 0.5 1.4 28.95
    1/8 3/8 0.09 11/16 0.5 1.41 29.21
    1/8 1/2 0.09 7/8 0.5 1.66 35.36
    3/16 1/8 0.12 7/16 0.54 7/16 24.63
    3/16 1/4 0.12 9/16 0.54 9/16 29.71
    1/4 1/16 0.12 1/2 0.6 1.29 25.4
    1/4 1/8 0.19 1/2 0.6 1.29 25.4
    1/4 1/4 0.19 9/16 0.6 1.49 30.48
    1/4 3/8 0.19 11/16 0.6 1.51 30.98
    1/4 1/2 0.19 7/8 0.6 1.76 37.33
    1/4 3/4 0.19 11/16 0.6 1.82 38.86
    5/16 1/8 0.19 9/16 0.64 1.34 26.67
    5/16 1/4 0.25 9/16 0.64 1.52 31.24
    5/16 3/8 0.25 11/16 0.64 1.54 31.75
    5/16 1/2 0.25 7/8 0.64 1.8 38.11
    3/8 1/8 0.19 5/8 0.66 1.39 27.94
    3/8 1/4 0.28 5/8 0.66 1.57 32.51
    3/8 3/8 0.28 11/16 0.66 1.57 32.51
    3/8 1/2 0.28 7/8 0.66 1.82 38.86
    3/8 3/4 0.28 11/16 0.66 1.88 40.38
    1/2 1/8 0.19 13/16 0.9 1.53 28.7
    1/2 1/4 0.28 13/16 0.9 1.71 33.27
    1/2 3/8 0.38 13/16 0.9 1.71 33.27
    1/2 1/2 0.41 7/8 0.9 1.93 38.86
    1/2 3/4 0.41 1-1/16 0.9 1.99 40.38
    1/2 1 0.41 1-3/8 0.9 2.25 46.99
    5/8 3/8 0.38 15/16 0.96 1.74 34.03
    5/8 1/2 0.47 15/16 0.96 1.93 38.86
    5/8 3/4 0.5 1-1/16 0.96 1.99 40.38
    3/4 1/2 0.47 1-1/16 0.96 1.99 40.38
    3/4 3/4 0.62 1-1/16 0.96 1.99 40.38
    3/4 1 0.62 1-3/8 0.96 2.25 46.99
    7/8 3/4 0.62 1-3/16 1.02 1.99 40.38
    7/8 1 0.72 1-3/8 1.02 2.25 46.99
    1 1/2 0.47 1-3/8 1.23 2.26 45.21
    1 3/4 0.62 1-3/8 1.23 2.26 45.21
    1 1 0.88 1-3/8 1.23 2.45 50.03
    1-1/4 1 0.88 1-3/4 1.62 3.04 55.11
    1-1/4 1-1/4 1.09 1 -3/4 1.62 3.04 55.11
    1-1/2 1-1/2 1.34 2-1/8 1.97 3.5 61.72
    2 2 1.81 2-3/4 2.66 4.47 76.2

    Elbow Connector (OD Tube Metric (mm) X NPT Male Pipe Thread)

    Metric OD P1 NPTM 0D F Hex A mm L mm H mm
    2 1/8 1.7 11 12.9 30.5 23.9
    3 1/8 2.4 11 12.9 30.5 23.1
    3 1/4 2.4 14 12.9 35.6 29
    4 1/8 2.4 12 13.7 31.2 24.6
    4 1/4 2.4 14 13.7 36.3 29.7
    6 1/8 4.8 14 15.3 32.8 25.4
    6 1/4 4.8 14 15.3 37.4 30.2
    6 3/8 4.8 18 15.3 38.4 31
    6 1/2 4.8 22 15.3 44.7 37.3
    8 1/8 4.8 14 16.2 34.2 26.7
    8 1/4 6.4 14 16.2 38.7 31.2
    8 3/8 6.4 17 16.2 39.3 31.8
    8 1/2 6.4 22 16.2 45.6 37.3
    10 1/8 4.8 19 17.2 36.3 28.7
    10 1/4 7.1 19 17.2 40.9 33.3
    10 3/8 7.9 19 17.2 40.9 33.3
    10 1/2 7.9 22 17.2 46.5 38.1
    10 3/4 7.9 27 17.2 48 38.1
    12 1/8 4.8 22 22.8 38.8 33.3
    12 1/4 7.1 22 22.8 43.4 33.3
    12 3/8 9.5 22 22.8 43.4 38.1
    12 1/2 9.5 22 22.8 49 38.9
    12 3/4 9.5 27 22.8 50.5 38.9
    14 1/4 7.1 24 24.4 44.1 34
    14 3/8 9.5 24 24.4 44.1 34
    14 1/2 11.1 24 24.4 49 38.9
    15 1/2 11.9 24 24.4 49 38.9
    16 3/8 9.5 24 24.4 41.1 34
    16 1/2 11.9 24 24.4 49 38.9
    16 3/4 12.7 27 24.4 50.5 38.9
    18 1/2 11.9 27 24.4 50.5 40.4
    18 3/4 15.1 27 24.4 50.5 40.4
    20 1/2 11.9 30 26 52.3 42.2
    20 3/4 15.9 30 26 52.3 42.2
    22 3/4 15.9 30 26 52.3 42.2
    22 1 18.3 35 26 57.1 47.8
    25 1/2 11.9 35 31.3 57.5 45.2
    25 3/4 15.9 35 31.3 57.5 45.2
    25 1 21.8 35 31.3 62.3 50
    28 1 21.8 41 36.6 72.4 51.6
    28 1-1/4 21.8 46 36.6 73.1 52.3
    30 1-1/4 26.2 46 39.6 77.2 56.6
    32 1-1/4 28.6 46 42 79.6 56.6
    38 1-1/2 33.7 55 49.4 91.6 64
       for SS 316 45 degree Elbow Connector  are 1.TYA SS 316 Elbow Connector 1/8" OD x 1/8" NPTM 2.TYA SS 316 45 degree Elbow Connector 1/4" OD x 1/4" NPTM 3.TYA SS 316 Elbow Connector 3/8" OD x 3/8" NPTM 4.TYA SS 316 45 degree Elbow Connector 1/2" OD x 1/2" NPTM 5.TYA SS 316 Elbow Connector 3/4" OD x 3/4" NPTM 6.TYA SS 316 45 degree Elbow Connector 1" OD x 1" NPTM 7.TYA SS 316 Elbow Connector 6mm OD x 1/8" NPTM 8.TYA SS 316 Elbow Connector 8mm OD x 1/2" NPTM 9.TYA SS 316 Elbow Connector 10mm OD x 1/4" NPTM 10.TYA SS 316 Elbow Connector 12mm OD x 3/8” NPTM 11.TYA SS 316 Elbow Connector 14mm OD x 3/4" NPTM
  • Shop Primary Image

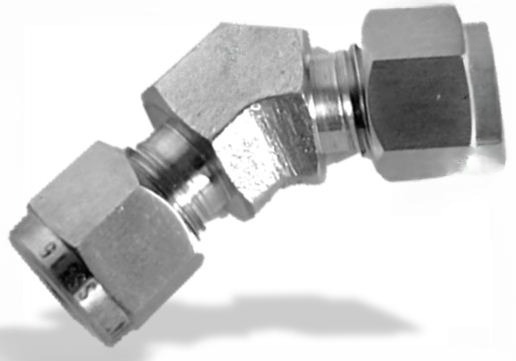

    45-degree-Elbow-Union

    45 DEGREE UNION ELBOW (OD Tube Imperial)

    0D1 Imperial 0D F Hex A Inch L Inch H mm
    1/16 0.05 5/16 0.34 0.99 19.7
    1/8 0.09 7/16 0.5 1.4 26.1
    3/16 0.12 7/16 0.54 1.47 26.1
    1/4 0.19 1/2 0.6 1.61 27.1
    5/16 0.25 9/16 0.64 1.69 30.3
    3/8 0.28 5/8 0.66 1.77 30.3
    1/2 0.41 13/16 0.9 2.02 31.5
    5/8 0.5 15/16 0.96 2.05 31.5
    3/4 0.62 1-1/16 0.96 2.11 32.5
    7/8 0.72 1-3/16 1.02 2.17 35.9
    1 0.88 1-3/8 1.23 2.55 40.9
    1-1/4 1.04 1-7/8 1.62 3.63 48
    1-1/2 1.34 2-1/4 1.97 4.25 53.6
    2 1.81 3 2.66 5.88 74.7

    45 DEGREE UNION ELBOW (OD Tube Metric)

    0D1 Metric 0D F Hex A Inch L Inch H mm
    2 0.05 5/16 0.34 0.99 19.7
    4 0.09 7/16 0.5 1.4 26.1
    6 0.12 7/16 0.54 1.47 26.1
    8 0.19 1/2 0.6 1.61 27.1
    10 0.25 9/16 0.64 1.69 30.3
    12 0.28 5/8 0.66 1.77 30.3
    14 0.41 13/16 0.9 2.02 31.5
    16 0.5 15/16 0.96 2.05 31.5
    20 0.62 1-1/16 0.96 2.11 32.5
      Some Common Sizes for SS 316 45 DEGREE UNION ELBOW are 1.TYA SS 316 45 Degree Union Elbow 1/8” OD 2.TYA SS 316 45 Degree Union Elbow 1/4” OD 3.TYA SS 316 45 Degree Union Elbow 3/8” OD 4.TYA SS 316 45 Degree Union Elbow 1/2” OD 5.TYA SS 316 45 Degree Union Elbow 3/4” OD 6.TYA SS 316 45 Degree Union Elbow 1” OD 7.TYA SS 316 Forty Five Degree Union Elbow 6mm OD 8.TYA SS 316 Forty Five Degree Union Elbow 8mm OD 9.TYA SS 316 Forty Five Degree Union Elbow 10mm OD 10.TYA SS 316 Forty Five Degree Union Elbow 12mm OD 11.TYA SS 316 Forty Five Degree Union Elbow 14mm OD 12.TYA SS 316 Forty Five Degree Union Elbow 16mm OD
  • Shop Primary Image

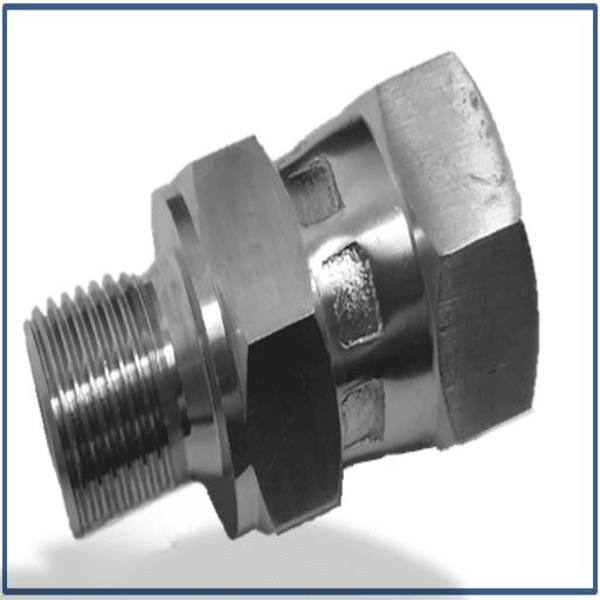

    Adapter BSP Swivel X BSP Male 60 deg cone,10000 psi
    TYA is the manufacturer of Adapter BSP Swivel X BSP Male 60 deg cone, 10000 psi as part of High Pressure Fittings and Valves 10000 psi, 700 Bars.
  • Shop Primary Image
    Adapter Double Ferrule x Push Lok Barb
    Adapter Double Ferrule x Push Lok Barb Adapter Double Ferrule x Push Lok Barb Adapter Double Ferrule x Push Lok Barb Adapter Double Ferrule x Push Lok Barb
  • Shop Primary Image

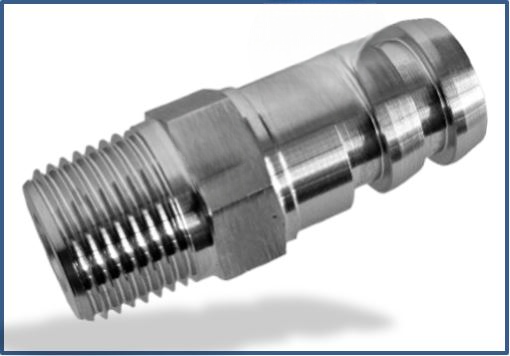

    Adapter Male x Push Lok Barb
  • Shop Primary Image

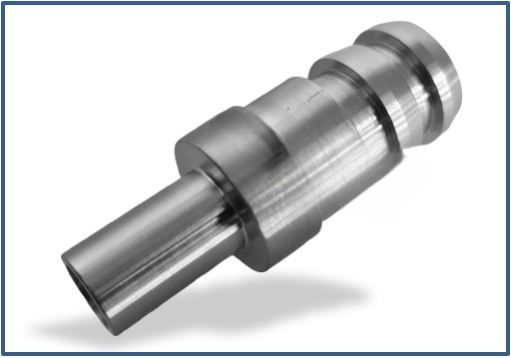

    Adapter Port x Push Lok Barb
    Adapter Port x Push Lok Barb Adapter Port x Push Lok Barb Adapter Port x Push Lok Barb Adapter Port x Push Lok Barb
  • Shop Primary Image

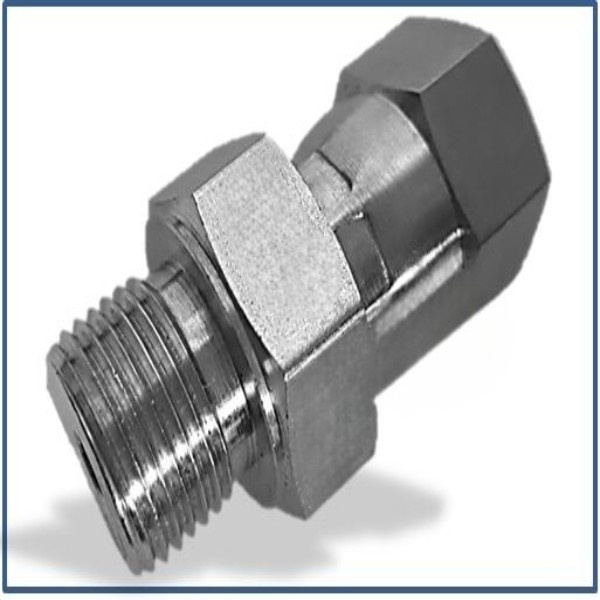

    Adapter Swivel X Male ,10000 psi
    Adaptor Swivel X Male,10000 psi TYA is the manufacturer of Adaptors Swivel X Male as part of High Pressure Fittings and Valves 10000 psi, 700 Bars. You can also visit our Exotic Fittings section for alternative modes for connecting tubes.
