    Elbow Union
    Elbow Union Double Ferrule Tube Compression Tube from 1/16" to 2" OD Tube and 3mm OD Tube to 50mm OD Tube with Double Ferrule and a Nut . UNION ELBOW (OD Tube Imperial)
    0D1 Imperial 0D F Hex A Inch L Inch H mm
    1/16 0.05 5/16 0.34 0.99 19.7
    1/8 0.09 7/16 0.5 1.4 26.1
    3/16 0.12 7/16 0.54 1.47 26.1
    1/4 0.19 1/2 0.6 1.61 27.1
    5/16 0.25 9/16 0.64 1.69 30.3
    3/8 0.28 5/8 0.66 1.77 30.3
    1/2 0.41 13/16 0.9 2.02 31.5
    5/8 0.5 15/16 0.96 2.05 31.5
    3/4 0.62 1-1/16 0.96 2.11 32.5
    7/8 0.72 1-3/16 1.02 2.17 35.9
    1 0.88 1-3/8 1.23 2.55 40.9
    1-1/4 1.04 1-7/8 1.62 3.63 48
    1-1/2 1.34 2-1/4 1.97 4.25 53.6
    2 1.81 3 2.66 5.88 74.7

    UNION ELBOW (OD Tube Metric)

    ØD1 Metric ØD F Hex A mm L mm H mm
    1/3 2.4 1/11 13.7 25.4 18.8
    1/5 4.8 1/11 15.3 27 19.6
    1/7 6.4 1/13 16.2 28.8 21.3
    1/9 7.9 1/16 17.2 31.5 23.9
    1/11 9.5 1/19 22.8 36 25.9
    1/13 11.1 1/22 24.4 38 28.7
    1/14 11.9 23.8 24.4 38 28.7
    1/15 12.7 23.8 24.4 38 28.7
    1/17 15.1 26.98 24.4 39.8 29.7
    1/19 15.9 32 26 44.6 32.5
    22 18.3 32 26 44.6 32.5
    25 21.8 32 26 44.6 32.5
    28 21.8 42 36.6 64 43.2
    30 26.2 46 39.6 69.9 43.2
    32 28.6 46 42 72.3 49.3
    2/6 33.7 2/23 49.4 84 56.4
    2/18 45.2 3/8 65 105.7 69.8
      Some Common Sizes for SS 316 Union Elbow are 1.TYA SS 316 Union Elbows 1/8” OD 2.TYA SS 316 Union Elbows 1/4” OD 3.TYA SS 316 Union Elbows 3/8” OD 4.TYA SS 316 Union Elbows 1/2” OD 5.TYA SS 316 Union Elbows 3/4” OD 6.TYA SS 316 Union Elbows 1” OD 7.TYA SS 316 Union Elbows 6mm OD 8.TYA SS 316 Union Elbows 8mm OD 9.TYA SS 316 Union Elbows 10mm OD 10.TYA SS 316 Union Elbows 12mm OD 11.TYA SS 316 Union Elbows 14mm OD 12.TYA SS 316 Union Elbows 16mm OD
  • Shop Primary Image
    Male Connector Port
  • Shop Primary Image

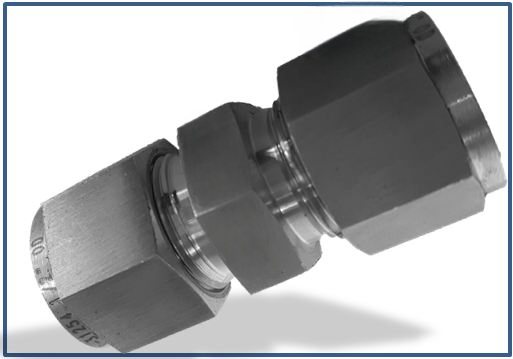

    Straight Union


    UNION in OD Tube Imperial (inches)

    0D1 Imperial 0D F Hex A Inch L Inch H mm
    1/16 0.05 5/16 0.34 0.99 19.7
    1/8 0.09 7/16 0.5 1.4 26.1
    3/16 0.12 7/16 0.54 1.47 26.1
    1/4 0.19 1/2 0.6 1.61 27.1
    5/16 0.25 9/16 0.64 1.69 30.3
    3/8 0.28 5/8 0.66 1.77 30.3
    1/2 0.41 13/16 0.9 2.02 31.5
    5/8 0.5 15/16 0.96 2.05 31.5
    3/4 0.62 1-1/16 0.96 2.11 32.5
    7/8 0.72 1-3/16 1.02 2.17 35.9
    1 0.88 1-3/8 1.23 2.55 40.9
    1-1/4 1.04 1-7/8 1.62 3.63 48
    1-1/2 1.34 2-1/4 1.97 4.25 53.6
    2 1.81 3 2.66 5.88 74.7

    UNION in OD Tube metric (mm)

    0D1 Metric 0D F Hex A mm L mm H mm
    2 1.7 10 12.9 35.6 26.6
    3 2.4 10 12.9 353 26.6
    4 2.4 10 13.7 37.3 27.6
    6 4.8 13 41 41 27.6
    8 6.4 14 43.2 43.2 30.8
    10 7.9 17 46.2 46.2 31
    12 9.5 20.5 51.2 51.2 32
    14 11 24 52 52 32.8
    15 11.9 24 52 52 0 32.8
    16 12.7 24 52 52 32.8
    18 15.1 27 53.5 53.5 33.3
    20 15.9 30 55 55 35
    22 18.3 30 55 55 36.4
    25 21.8 35 65 65 41.4
    28 21.8 46 85 85 43.4
    30 26.2 50 92.7 92.7 43.4
    32 28.6 50 97.3 97.3 51.8
    38 33.7 60 113.6 113.6 58.4
    50 45.2 75 145.8 145.8 145.8
      Some Common Sizes for SS 316 Straight Union are 1.TYA SS 316 Straight Union 1/8” OD 2.TYA SS 316 Straight Union 1/4” OD 3.TYA SS 316 Straight Union 3/8” OD 4.TYA SS 316 Straight Union 1/2” OD 5.TYA SS 316 Straight Union 3/4” OD 6.TYA SS 316 Straight Union 1” OD 7.TYA SS 316 Straight Union 6mm OD 8.TYA SS 316 Straight Union 8mm OD 9.TYA SS 316 Straight Union 10mm OD 10.TYA SS 316 Straight Union 12mm OD
