Tee Union
Tee Union - Image 2

Tee Union

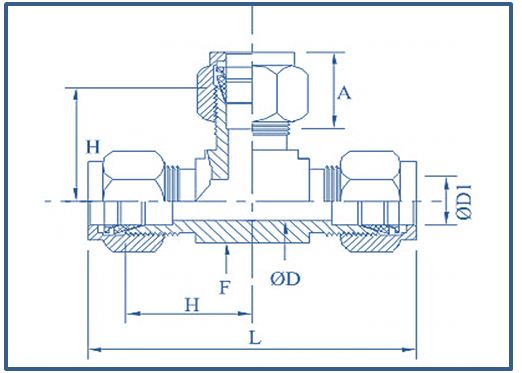

UNION TEE (OD Tube Imperial)

0D1 Imperial 0D F Hex A Inch L Inch H mm
1/16 0.05 1/2 0.34 1.4 14
1/8 0.09 1/2 0.5 1.76 15.74
3/16 0.12 1/2 0.54 1.92 17.78
1/4 0.19 1/2 0.6 2.12 19.55
5/16 0.25 5/8 0.64 2.34 21.33
3/8 28 5/8 0.66 2.4 23.11
1/2 0.41 13/16 0.9 2.84 25.9
5/8 0.5 1 0.96 3.06 28.7
3/4 0.62 1-1/16 0.96 3.14 29.71
7/8 0.72 1-1/4 1.02 3.52 34.54
1 0.88 1-3/8 1.23 3.86 36.83
1-1/4 1.09 1-11/16 1.62 5.34 44.5
1-1/2 1.34 2 1.97 6.2 50.8
2 1.81 2-3/4 2.66 8.44 69.8



UNION TEE (OD Tube Metric)

0D1 Metric 0D F Hex A mm L mm H mm
2 1.7 9.5 12.9 44.7 15.7
3 2.4 9.5 12.9 44.7 15.7
4 2.4 12.7 13.7 50.8 18.8
6 4.8 12.7 15.3 53.9 19.6
8 6.4 14.2 16.2 59.7 21.3
10 7.9 17.5 17.2 63 23.9
12 9.5 20.6 22.8 72 25.9
14 11.1 25.44 24.4 77.6 28.7
15 11.9 25.44 24.4 77.6 28.7
16 12.7 25.44 24.4 77.6 28.7
18 15.1 26.98 24.4 79.6 29.7
20 15.9 30 26 89.3 32.5
22 18.3 30 26 89.3 32.5
25 21.8 36 31.3 98.3 36.8
28 21.8 42 36.6 128,0 43.2
30 26.2 46 39 139.7 43.2
32 28.6 46 42 144.6 49.3
38 33.7 55 49.4 168 56.4
50 45,2 68.85 65 211.3 69.8



Some Common Sizes for SS 316 Tee Union are

1. Sharma Technocast SS 316 Tee Unions 1/8” OD

2. Sharma Technocast SS 316 Tee Unions 1/4” OD

3. Sharma Technocast SS 316 Tee Unions 3/8” OD

4. Sharma Technocast SS 316 Tee Unions 1/2” OD

5. Sharma Technocast SS 316 Tee Unions 3/4” OD

6. Sharma Technocast SS 316 Tee Unions 1” OD

7. Sharma Technocast SS 316 Tee Unions 6mm OD

8. Sharma Technocast SS 316 Tee Unions 8mm OD

9. Sharma Technocast SS 316 Tee Unions 10mm OD

10. Sharma Technocast SS 316 Tee Unions 12mm OD

11. Sharma Technocast SS 316 Tee Unions 14mm OD

12. Sharma Technocast SS 316 Tee Unions 16mm OD

Get a Quote
