  Female Elbow

•

  45-degree-Elbow-Union

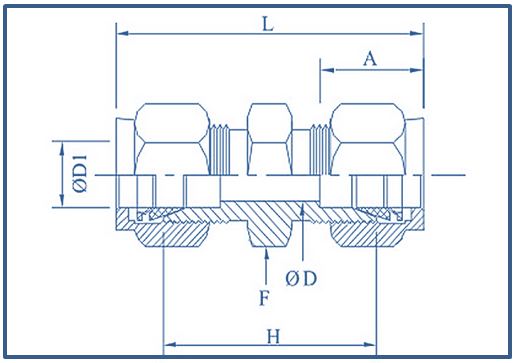

  45 DEGREE UNION ELBOW (OD Tube Imperial)

  0D1 Imperial	0D	F Hex	A Inch	L Inch	H mm
  1/16	0.05	5/16	0.34	0.99	19.7
  1/8	0.09	7/16	0.5	1.4	26.1
  3/16	0.12	7/16	0.54	1.47	26.1
  1/4	0.19	1/2	0.6	1.61	27.1
  5/16	0.25	9/16	0.64	1.69	30.3
  3/8	0.28	5/8	0.66	1.77	30.3
  1/2	0.41	13/16	0.9	2.02	31.5
  5/8	0.5	15/16	0.96	2.05	31.5
  3/4	0.62	1-1/16	0.96	2.11	32.5
  7/8	0.72	1-3/16	1.02	2.17	35.9
  1	0.88	1-3/8	1.23	2.55	40.9
  1-1/4	1.04	1-7/8	1.62	3.63	48
  1-1/2	1.34	2-1/4	1.97	4.25	53.6
  2	1.81	3	2.66	5.88	74.7

  45 DEGREE UNION ELBOW (OD Tube Metric)

  0D1 Metric	0D	F Hex	A Inch	L Inch	H mm
  2	0.05	5/16	0.34	0.99	19.7
  4	0.09	7/16	0.5	1.4	26.1
  6	0.12	7/16	0.54	1.47	26.1
  8	0.19	1/2	0.6	1.61	27.1
  10	0.25	9/16	0.64	1.69	30.3
  12	0.28	5/8	0.66	1.77	30.3
  14	0.41	13/16	0.9	2.02	31.5
  16	0.5	15/16	0.96	2.05	31.5
  20	0.62	1-1/16	0.96	2.11	32.5

    Some Common Sizes for SS 316 45 DEGREE UNION ELBOW are 1. Sharma Technocast SS 316 45 Degree Union Elbow 1/8” OD 2. Sharma Technocast SS 316 45 Degree Union Elbow 1/4” OD 3. Sharma Technocast SS 316 45 Degree Union Elbow 3/8” OD 4. Sharma Technocast SS 316 45 Degree Union Elbow 1/2” OD 5. Sharma Technocast SS 316 45 Degree Union Elbow 3/4” OD 6. Sharma Technocast SS 316 45 Degree Union Elbow 1” OD 7. Sharma Technocast SS 316 Forty Five Degree Union Elbow 6mm OD 8. Sharma Technocast SS 316 Forty Five Degree Union Elbow 8mm OD 9. Sharma Technocast SS 316 Forty Five Degree Union Elbow 10mm OD 10. Sharma Technocast SS 316 Forty Five Degree Union Elbow 12mm OD 11. Sharma Technocast SS 316 Forty Five Degree Union Elbow 14mm OD 12. Sharma Technocast SS 316 Forty Five Degree Union Elbow 16mm OD
•

  Male Branch Tee

•

  45-deg-Elbow-Connector

  Elbow Connector (OD Tube Imperial(Inches) X NPT Male Pipe Thread)

  OD1 Imperial	P1 NPTM	OD	F Hex	A inch	L inch	H mm
  1/16	1/16	0.05	5/16	0.34	0.94	20
  1/16	1/8	0.05	7/16	0.34	1.03	22.35
  1/16	1/4	0.05	9/16	0.34	1.22	27.17
  1/8	1/16	0.09	7/16	0.5	1.17	23.11
  1/8	1/8	0.09	7/16	0.5	1.2	23.87
  1/8	1/4	0.09	9/16	0.5	1.4	28.95
  1/8	3/8	0.09	11/16	0.5	1.41	29.21
  1/8	1/2	0.09	7/8	0.5	1.66	35.36
  3/16	1/8	0.12	7/16	0.54	7/16	24.63
  3/16	1/4	0.12	9/16	0.54	9/16	29.71
  1/4	1/16	0.12	1/2	0.6	1.29	25.4
  1/4	1/8	0.19	1/2	0.6	1.29	25.4
  1/4	1/4	0.19	9/16	0.6	1.49	30.48
  1/4	3/8	0.19	11/16	0.6	1.51	30.98
  1/4	1/2	0.19	7/8	0.6	1.76	37.33
  1/4	3/4	0.19	11/16	0.6	1.82	38.86
  5/16	1/8	0.19	9/16	0.64	1.34	26.67
  5/16	1/4	0.25	9/16	0.64	1.52	31.24
  5/16	3/8	0.25	11/16	0.64	1.54	31.75
  5/16	1/2	0.25	7/8	0.64	1.8	38.11
  3/8	1/8	0.19	5/8	0.66	1.39	27.94
  3/8	1/4	0.28	5/8	0.66	1.57	32.51
  3/8	3/8	0.28	11/16	0.66	1.57	32.51
  3/8	1/2	0.28	7/8	0.66	1.82	38.86
  3/8	3/4	0.28	11/16	0.66	1.88	40.38
  1/2	1/8	0.19	13/16	0.9	1.53	28.7
  1/2	1/4	0.28	13/16	0.9	1.71	33.27
  1/2	3/8	0.38	13/16	0.9	1.71	33.27
  1/2	1/2	0.41	7/8	0.9	1.93	38.86
  1/2	3/4	0.41	1-1/16	0.9	1.99	40.38
  1/2	1	0.41	1-3/8	0.9	2.25	46.99
  5/8	3/8	0.38	15/16	0.96	1.74	34.03
  5/8	1/2	0.47	15/16	0.96	1.93	38.86
  5/8	3/4	0.5	1-1/16	0.96	1.99	40.38
  3/4	1/2	0.47	1-1/16	0.96	1.99	40.38
  3/4	3/4	0.62	1-1/16	0.96	1.99	40.38
  3/4	1	0.62	1-3/8	0.96	2.25	46.99
  7/8	3/4	0.62	1-3/16	1.02	1.99	40.38
  7/8	1	0.72	1-3/8	1.02	2.25	46.99
  1	1/2	0.47	1-3/8	1.23	2.26	45.21
  1	3/4	0.62	1-3/8	1.23	2.26	45.21
  1	1	0.88	1-3/8	1.23	2.45	50.03
  1-1/4	1	0.88	1-3/4	1.62	3.04	55.11
  1-1/4	1-1/4	1.09	1 -3/4	1.62	3.04	55.11
  1-1/2	1-1/2	1.34	2-1/8	1.97	3.5	61.72
  2	2	1.81	2-3/4	2.66	4.47	76.2

  Elbow Connector (OD Tube Metric (mm) X NPT Male Pipe Thread)

  Metric OD	P1 NPTM	0D	F Hex	A mm	L mm	H mm
  2	1/8	1.7	11	12.9	30.5	23.9
  3	1/8	2.4	11	12.9	30.5	23.1
  3	1/4	2.4	14	12.9	35.6	29
  4	1/8	2.4	12	13.7	31.2	24.6
  4	1/4	2.4	14	13.7	36.3	29.7
  6	1/8	4.8	14	15.3	32.8	25.4
  6	1/4	4.8	14	15.3	37.4	30.2
  6	3/8	4.8	18	15.3	38.4	31
  6	1/2	4.8	22	15.3	44.7	37.3
  8	1/8	4.8	14	16.2	34.2	26.7
  8	1/4	6.4	14	16.2	38.7	31.2
  8	3/8	6.4	17	16.2	39.3	31.8
  8	1/2	6.4	22	16.2	45.6	37.3
  10	1/8	4.8	19	17.2	36.3	28.7
  10	1/4	7.1	19	17.2	40.9	33.3
  10	3/8	7.9	19	17.2	40.9	33.3
  10	1/2	7.9	22	17.2	46.5	38.1
  10	3/4	7.9	27	17.2	48	38.1
  12	1/8	4.8	22	22.8	38.8	33.3
  12	1/4	7.1	22	22.8	43.4	33.3
  12	3/8	9.5	22	22.8	43.4	38.1
  12	1/2	9.5	22	22.8	49	38.9
  12	3/4	9.5	27	22.8	50.5	38.9
  14	1/4	7.1	24	24.4	44.1	34
  14	3/8	9.5	24	24.4	44.1	34
  14	1/2	11.1	24	24.4	49	38.9
  15	1/2	11.9	24	24.4	49	38.9
  16	3/8	9.5	24	24.4	41.1	34
  16	1/2	11.9	24	24.4	49	38.9
  16	3/4	12.7	27	24.4	50.5	38.9
  18	1/2	11.9	27	24.4	50.5	40.4
  18	3/4	15.1	27	24.4	50.5	40.4
  20	1/2	11.9	30	26	52.3	42.2
  20	3/4	15.9	30	26	52.3	42.2
  22	3/4	15.9	30	26	52.3	42.2
  22	1	18.3	35	26	57.1	47.8
  25	1/2	11.9	35	31.3	57.5	45.2
  25	3/4	15.9	35	31.3	57.5	45.2
  25	1	21.8	35	31.3	62.3	50
  28	1	21.8	41	36.6	72.4	51.6
  28	1-1/4	21.8	46	36.6	73.1	52.3
  30	1-1/4	26.2	46	39.6	77.2	56.6
  32	1-1/4	28.6	46	42	79.6	56.6
  38	1-1/2	33.7	55	49.4	91.6	64

     for SS 316 45 degree Elbow Connector  are 1. Sharma Technocast SS 316 Elbow Connector 1/8" OD x 1/8" NPTM 2. Sharma Technocast SS 316 45 degree Elbow Connector 1/4" OD x 1/4" NPTM 3. Sharma TechnocastSS 316 Elbow Connector 3/8" OD x 3/8" NPTM 4. Sharma Technocast SS 316 45 degree Elbow Connector 1/2" OD x 1/2" NPTM 5. Sharma Technocast SS 316 Elbow Connector 3/4" OD x 3/4" NPTM 6. Sharma Technocast SS 316 45 degree Elbow Connector 1" OD x 1" NPTM 7. Sharma Technocast SS 316 Elbow Connector 6mm OD x 1/8" NPTM 8. Sharma Technocast SS 316 Elbow Connector 8mm OD x 1/2" NPTM 9. Sharma Technocast SS 316 Elbow Connector 10mm OD x 1/4" NPTM 10. Sharma Technocast SS 316 Elbow Connector 12mm OD x 3/8” NPTM 11. Sharma Technocast SS 316 Elbow Connector 14mm OD x 3/4" NPTM
