Reducing Union

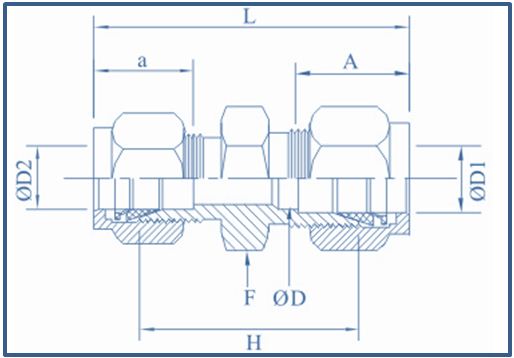

REDUCING UNION (OD Tube Imperial)
| 0D1 Inch | 0D2 Inch | 0D Inch | F Hex | A Inch | a Inch | L Inch | H mm |
| 1/8 | 1/16 | 0.05 | 7/16 | 0.5 | 0.34 | 1.22 | 20.6 |
| 3/16 | 1/16 | 0.05 | 7/16 | 0.54 | 0.3 | 1.27 | 21.84 |
| 3/16 | 1/8 | 0.09 | 7/16 | 0.54 | 0.5 | 1.44 | 23.36 |
| ¼ | 1/16 | 0.05 | ½ | 0.6 | 0.34 | 1.35 | 23.11 |
| ¼ | 1/8 | 0.09 | ½ | 0.6 | 0.5 | 1.52 | 21.63 |
| ¼ | 3/16 | 0.12 | ½ | 0.6 | 0.54 | 1.55 | 25.4 |
| 5/16 | 1/8 | 0.09 | 9/16 | 0.64 | 0.5 | 1.56 | 25.9 |
| 5/16 | ¼ | 0.19 | 9/16 | 0.64 | 0.6 | 1.66 | 27.43 |
| 3/8 | 1/16 | 0.05 | 5/8 | 0.66 | 0.34 | 1.44 | 25.4 |
| 3/8 | 1/8 | 0.09 | 5/8 | 0.66 | 0.5 | 1.61 | 26.92 |
| 3/8 | ¼ | 0.19 | 5/8 | 0.66 | 0.6 | 1.7 | 28.44 |
| 3/8 | 5/16 | 0.25 | 5/8 | 0.66 | 0.64 | 1.74 | 29.46 |
| ½ | 1/8 | 0.09 | 13/16 | 0.9 | 0.5 | 1.78 | 28.44 |
| ½ | ¼ | 0.19 | 13/16 | 0.9 | 0.6 | 1.85 | 29.46 |
| ½ | 3/8 | 0.28 | 13/16 | 0.9 | 0.66 | 1.91 | 30.98 |
| 5/8 | 3/8 | 0.28 | 15/16 | 0.96 | 0.66 | 1.94 | 31.75 |
| 5/8 | ½ | 0.41 | 15/16 | 0.96 | 0.9 | 2.05 | 31.75 |
| ¾ | ¼ | 0.19 | 1-1/16 | 0.96 | 0.6 | 1.94 | 31.75 |
| ¾ | 3/8 | 0.28 | 1-1/16 | 0.96 | 0.66 | 2 | 33.27 |
| ¾ | ½ | 0.41 | 1-1/16 | 0.96 | 0.9 | 2.11 | 33.27 |
| ¾ | 5/8 | 0.5 | 1-1/16 | 0.96 | 0.96 | 2.11 | 33.27 |
| 1 | ½ | 0.41 | 1-3/8 | 1.23 | 0.9 | 2.38 | 40.89 |
| 1 | 3/4 | 0.62 | 1-3/8 | 1.23 | 0.96 | 2.38 | 40.38 |
REDUCING UNION (OD Tube Metric)
| 0D1 mm | 0D2 mm | 0D mm | F Hex | A mm | a mm |
| 3 | 2 | 1.7 | 12 | 12.9 | 12.9 |
| 6 | 2 | 1.7 | 14 | 15.3 | 12.9 |
| 6 | 3 | 2.4 | 14 | 15.3 | 12.9 |
| 6 | 4 | 2.4 | 14 | 15.3 | 13.7 |
| 8 | 6 | 4.8 | 16 | 16.2 | 15.3 |
| 10 | 6 | 4.8 | 19 | 17.2 | 15.3 |
| 10 | 8 | 6.4 | 19 | 17.2 | 16.2 |
| 12 | 6 | 4.8 | 22 | 22.8 | 15.3 |
| 12 | 8 | 6.4 | 22 | 22.8 | 16.2 |
| 12 | 10 | 7.9 | 22 | 22.8 | 17.2 |
| 16 | 10 | 7.9 | 25 | 24.4 | 17.2 |
| 16 | 12 | 9.5 | 25 | 24.4 | 22.8 |
| 18 | 12 | 9.5 | 30 | 24.4 | 22.8 |
| 25 | 18 | 15.1 | 38 | 31.3 | 24.4 |
| 25 | 20 | 15.9 | 38 | 31.3 | 26 |
| 30 | 18 | 15.1 | 50 | 39.6 | 24.4 |
| 30 | 20 | 15.9 | 50 | 39.6 | 26 |
| 30 | 25 | 21.8 | 50 | 39.6 | 31.3 |
| 32 | 18 | 15.1 | 50 | 42 | 24.4 |
| 32 | 20 | 15.9 | 50 | 42 | 26 |
Some Common Sizes for SS 316 Reducing Union are
1.TYA SS 316 Reducing Unions 1/8” OD x 1/4” OD
2.TYA SS 316 Reducing Unions 1/4” OD x 3/8” OD
3.TYA SS 316 Reducing Unions 3/8” OD x 1/2” OD
4.TYA SS 316 Reducing Unions 1/2” OD x 3/4” OD
5.TYA SS 316 Reducing Unions 3/4” OD x 1” OD
6.TYA SS 316 Reducing Unions 1” OD x ½” OD
7.TYA SS 316 Reducing Unions 6mm OD x 4mm OD
8.TYA SS 316 Reducing Unions 8mm OD x 6mm OD
9.TYA SS 316 Reducing Unions 10mm OD x 8mm OD
10.TYA SS 316 Reducing Unions 12mm OD x 10mm OD
