Pipe Cap,10000 psi
Pipe Cap,10000 psi - Image 2

Pipe Cap,10000 psi

TYA is the manufacturer of High Pressure Pipe Cap in 10000 psi , 700 Bars. It has NPT Female Connection on both sides .

Standard Material for Pipe Cap,10000 psi is SS 316 but is also available in Carbon Steel, Brass, Hastelloy , Inconel alloys , Monel alloys , Titanium , Super Duplex & Duplex.

Common sizes are 1/4″ NPT Female , 3/8″ NPT Female , 1/2″ NPT Female ,3/4″ NPT Female, 1″ NPT Female .

High Pressure Fittings are used in almost all industrial applications where threaded connections are involved . It also used in Hydro testing setup .

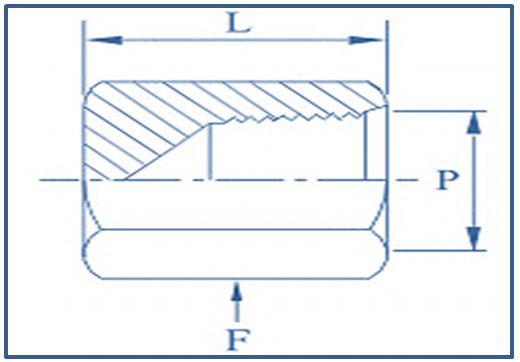

PART No. P F L
 NPTF  HEX
FHPF/10K/PC/2I 1/8″ 3/4″ 0.85″
FHPF/10K/PC/4I 1/4″ 7/8″ 0.94″
FHPF/10K/PC/6I 3/8″ 1-1/8″ 1.04″
FHPF/10K/PC/8I 1/2″ 1-3/8″ 1.38″
FHPF/10K/PC/12I 3/4″ 1-3/4″ 1.50″
FHPF/10K/PC/16I 1″ 2-1/4″ 1.85″
Get a Quote
