Description
TYA is the manufacturer of High Pressure Hex Long Coupling 10000 psi , 700 Bars. It has NPT Female Connection on both sides .
Standard Material for Hex Coupling,10000 psi is SS 316 but is also available in Carbon Steel, Brass, Hastelloy , Inconel alloys , Monel alloys , Titanium , Super Duplex & Duplex .
Common sizes are 1/8″ NPT Female, 1/4″ NPT Female , 3/8″ NPT Female , 1/2″ NPT Female.
High Pressure Fittings are used in almost all industrial applications where threaded connections are involved . It also used in Hydro testing setup .

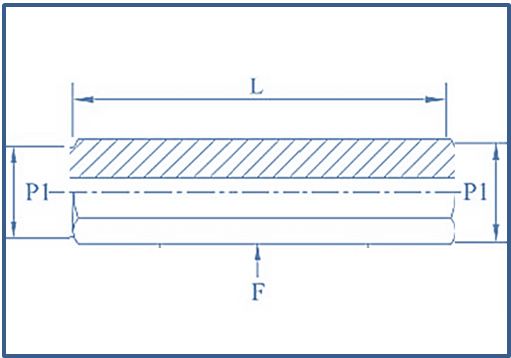

| PART No. | P1 | F | L | |
| NPTF | LONG | HEX | ||
| FHPF/10K/HCL/2-3I | 1/8″ | 3″ | 7/16″ | 3.00″ |
| FHPF/10K/HCL/4-3I | 1/4″ | 3″ | 5/8″ | 3.00″ |
| FHPF/10K/HCL/4-4I | 1/4″ | 4″ | 5/8″ | 4.00″ |
| FHPF/10K/HCL/4-6I | 1/4″ | 6″ | 5/8″ | 6.00″ |
| FHPF/10K/HCL/6-3I | 3/8″ | 3″ | 3/4″ | 3.00″ |
| FHPF/10K/HCL/6-4I | 3/8″ | 4″ | 3/4″ | 4.00″ |
| FHPF/10K/HCL/6-6I | 3/8″ | 6″ | 3/4″ | 6.00″ |
| FHPF/10K/HCL/8-3I | 1/2″ | 3″ | 7/8″ | 3.00″ |
| FHPF/10K/HCL/8-4I | 1/2″ | 4″ | 7/8″ | 4.00″ |
| FHPF/10K/HCL/8-6I | 1/2″ | 6″ | 7/8″ | 6.00″ |
