Hex Reducing Coupling 10000 psi
Hex Reducing Coupling 10000 psi - Image 2

Hex Reducing Coupling 10000 psi

TYA is the manufacturer of High Pressure Hex Reducing Couplings 10000 psi , 700 Bars. It has NPT Female Connection on both sides .

Standard Material for Hex Reducing Couplings 10000 psi is SS 316 but is also available in Carbon Steel, Brass, Hastelloy , Inconel alloys , Monel alloys , Titanium , Super Duplex & Duplex .

Common sizes are 1/4″ NPT Female , 3/8″ NPT Female , 1/2″ NPT Female , 3/4″ NPT Female , 1″ NPT Female .

High Pressure Fittings are used in almost all industrial applications where threaded connections are involved . It also used in Hydro testing setup .

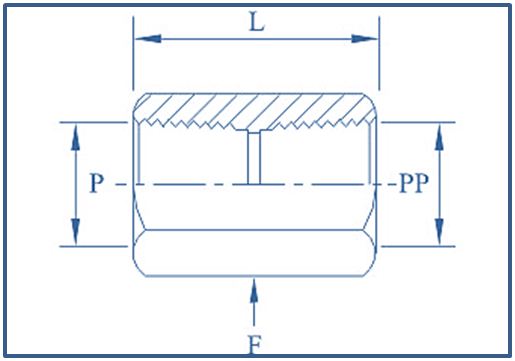

PART No. P PP F L
 NPTF  NPTF HEX
FHPF/10K/HRC/4-2I 1/4″ 1/8″ 7/8″ 0.95″
FHPF/10K/HRC/6-2I 3/8″ 1/8″ 1-1/8″ 0.95″
FHPF/10K/HRC/6-4I 3/8″ 1/4″ 1-1/8″ 1.13″
FHPF/10K/HRC/8-2I 1/2″ 1/8″ 1-3/8″ 1.19″
FHPF/10K/HRC/8-4I 1/2″ 1/4″ 1-3/8″ 1.37″
FHPF/10K/HRC/8-6I 1/2″ 3/8″ 1-3/8″ 1.37″
FHPF/10K/HRC/12-4I 3/4″ 1/4″ 1-3/4″ 1.40″
FHPF/10K/HRC/12-6I 3/4″ 3/8″ 1-3/4″ 1.40″
FHPF/10K/HRC/12-8I 3/4″ 1/2″ 1-3/4″ 1.53″
FHPF/10K/HRC/16-4I 1″ 1/4″ 2-1/4″ 1.63″
FHPF/10K/HRC/16-6I 1″ 3/8″ 2-1/4″ 1.63″
FHPF/10K/HRC/16-8I 1″ 1/2″ 2-1/4″ 1.76″
FHPF/10K/HRC/16-12I 1″ 3/4″ 2-1/4″ 1.76″
