Hex Adaptor BSP Male X NPT Male
Hex Adaptor BSP Male X NPT Male - Image 2

Hex Adaptor BSP Male X NPT Male

Sharma Technocast is the manufacturer of High Pressure Hex Adaptor BSP Male X NPT Male 10000 psi , 700 Bars. It has NPT Male Connection on one side and BSP Male Connection on the other side .

Standard Material for Hex Nipple,10000 psi is SS 316 but is also available in Carbon Steel, Brass, Hastelloy , Inconel alloys , Monel alloys , Titanium , Super Duplex & Duplex .

Common sizes are 1/4″ NPT Male X 1/8″ BSP Male, 3/8″ NPT Male X 1/4″ BSP Male , 1/2″ NPT Male X 3/8″ BSP Male, 3/4″ NPT Male X 1/2″ BSP Male, 1″ NPT Male X 3/4″ BSP Male.

High Pressure Fittings are used in almost all industrial applications where threaded connections are involved . It also used in Hydro testing setup .

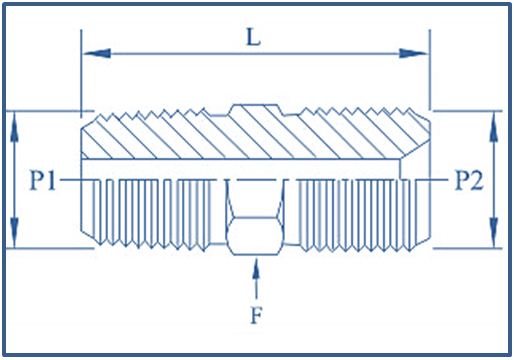

PART No. P1 F L
 BSPP 60 Con     NPTM HEX
FHPF/10K/HN-GN/2-2I 1/8″ 1/8″ 9/16″ 1.06″
FHPF/10K/HN-GN/4-4I 1/4″ 1/4″ 3/4″ 1.43″
FHPF/10K/HN-GN/6-6I 3/8″ 3/8″ 7/8″ 1.43″
FHPF/10K/HN-GN/8-8I 1/2″ 1/2″ 1-1/8″ 1.81″
FHPF/10K/HN-GN/12-12I 3/4″ 3/4″ 1-3/8″ 1.90″
FHPF/10K/HN-GN/16-16I 1″ 1″ 1-5/8″ 2.44″
PART No. P1 P2 F L
 BSPP 60 Con  NPTM HEX
FPF/10K/HRN-GN/2-4I 1/8″ 1/4″ 5/8″ 1.27″
FPF/10K/HRN-GN/4-2I 1/4″ 1/8″ 3/4″ 1.27″
FPF/10K/HRN-GN/4-6I 1/4″ 3/8″ 3/4″ 1.43″
FPF/10K/HRN-GN/6-4I 3/8″ 1/4″ 7/8″ 1.43″
FPF/10K/HRN-GN/6-8I 3/8″ 1/2″ 7/8″ 1.65″
FPF/10K/HRN-GN/8-6I 1/2″ 3/8″ 1-1/8″ 1.65″
FPF/10K/HRN-GN/8-12I 1/2″ 3/4″ 1-1/8″ 1.90″
FPF/10K/HRN-GN/12-8I 3/4″ 1/2″ 1-3/8″ 1.90″
FPF/10K/HRN-GN/12-16I 3/4″ 1″ 1-3/8″ 2.20″
FPF/10K/HRN-GN/16-12I 1″ 3/4″ 1-5/8″ 2.20″
