Gauge Adaptor, 10000 psi
Gauge Adaptor, 10000 psi - Image 2

Gauge Adaptor, 10000 psi

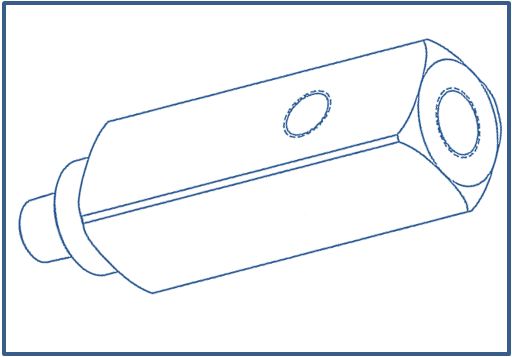

Gauge adapter enables the addition of a pressure gauge into a hydraulic system. The adapter has a 1/2″ National Pipe Thread Fuel (NPTF) port that accepts a gauge . The maximum operating pressure is 10,000 psi (pounds per square inch). Standard overall length is 6.10″.

Part Number Inlet Outlet 2 Ports
FHPF/10K/GA/1 1/4″ 1/4″ 1/4″
FHPF/10K/GA/2 3/8″ 3/8″ 1/4″
FHPF/10K/GA/3 3/8″ 3/8″ 3/8″
FHPF/10K/GA/4 1/2″ 1/2″ 1/4″
FHPF/10K/GA/5 1/2″ 1/2″ 3/8″
FHPF/10K/GA/6 1/2″ 1/2″ 1/2″
Get a Quote
Category:

Related Products

  • Shop Primary Image
    3 Piece Coupling,10000 psi
    3 Piece Coupling 10000 psi TYA is the manufacturer of 3 Piece Couplings, as part of High Pressure Fittings and Valves 10000 psi, 700 bar. Some Common Sizes for 3 Piece Couplings 10000 psi are, 1.TYA SS 316, Coupling 1/4″ NPTF  x 1/4″ NPTF, 10000psi 2.TYA SS 316, Three Pc Couplings 3/8″ NPTF  x 3/8″ NPTF, 10000psi 3.TYA SS 316, Union 1/2″ NPTF  x 1/2″ NPTF, 10000psi 4.TYA SS 316, Three Pc Couplings 3/4″ NPTF  x 3/4″” NPTF, 10000psi 5.TYA SS 316, Union 1″ NPTF  x 1” NPTF, 10000psi
  • Shop Primary Image
    Elbow,10000 psi
    TYA is the manufacturer of High Pressure Female Elbow in 10000 psi,700 Bars. It has NPT Female Connection on both sides with shape of elbow (L shape) Standard Material for Female Elbow,10000 psi is SS 316 but is also available in Carbon Steel, Brass, Hastelloy , Inconel alloys , Monel alloys , Titanium , Super Duplex & Duplex . Common sizes are 1/4" NPT Female , 3/8" NPT Female , 1/2" NPT Female. High Pressure Fittings are used in almost all industrial applications where threaded connections are involved . It also used in Hydro testing setup .
    PART No. P NPTF L C
    FHPF/10K/FE/2I 1/8" 1.12" 1.12" 0.75"
    FHPF/10K/FE/4I 1/4" 1.50" 1.50" 1.00"
    FHPF/10K/FE/6I 3/8" 1.85" 1.85" 1.25"
    FHPF/10K/FE/8I 1/2" 2.25" 2.25" 1.50"
  • Shop Primary Image
    Pipe Plug,10000 psi
    TYA is the manufacturer of High Pressure Hex Plug in 10000 psi , 700 Bars. It has NPT Male Connection on one side. Standard Material for Hex Plug,10000 psi is SS 316 but is also available in Carbon Steel, Brass, Hastelloy , Inconel alloys , Monel alloys , Titanium , Super Duplex & Duplex . Common sizes are 1/4" NPT Male , 3/8" NPT Male , 1/2" NPT Male ,3/4" NPT Male, 1" NPT Male . High Pressure Fittings are used in almost all industrial applications where threaded connections are involved . It also used in Hydro testing setup .
    PART No. P1 F L
     NPTM HEX
    FHPF/10K/HP/2I 1/8" 7/16" 0.56"
    FHPF/10K/HP/4I 1/4" 5/8" 0.84"
    FHPF/10K/HP/6I 3/8" 3/4" 0.84"
    FHPF/10K/HP/8I 1/2" 7/8" 1.09"
    FHPF/10K/HP/12I 3/4" 1-1/8" 1.17"
    FHPF/10K/HP/16I 1" 1-3/8" 1.36"
  • Shop Primary Image
    Pipe Cap,10000 psi
    TYA is the manufacturer of High Pressure Pipe Cap in 10000 psi , 700 Bars. It has NPT Female Connection on both sides . Standard Material for Pipe Cap,10000 psi is SS 316 but is also available in Carbon Steel, Brass, Hastelloy , Inconel alloys , Monel alloys , Titanium , Super Duplex & Duplex. Common sizes are 1/4" NPT Female , 3/8" NPT Female , 1/2" NPT Female ,3/4" NPT Female, 1" NPT Female . High Pressure Fittings are used in almost all industrial applications where threaded connections are involved . It also used in Hydro testing setup .
    PART No. P F L
     NPTF  HEX
    FHPF/10K/PC/2I 1/8" 3/4" 0.85"
    FHPF/10K/PC/4I 1/4" 7/8" 0.94"
    FHPF/10K/PC/6I 3/8" 1-1/8" 1.04"
    FHPF/10K/PC/8I 1/2" 1-3/8" 1.38"
    FHPF/10K/PC/12I 3/4" 1-3/4" 1.50"
    FHPF/10K/PC/16I 1" 2-1/4" 1.85"
