Block Cross,10000 psi
Block Cross,10000 psi - Image 2

Block Cross,10000 psi

TYA is the manufacturer of High Pressure fittings Block Cross,10000 psi, 700 Bars . We make Variety of Stainless Steel high pressure fitting 10000 psi . Block Cross or Box Cross is made from Solid Square Bar and can be used for pressure upto 15000 psi .

Common sizes are 1/8″ NPTF, 1/4″ NPTF, 3/8″ NPTF, 1/2″ NPTF, 3/4″ NPTF, 1″ NPTF.

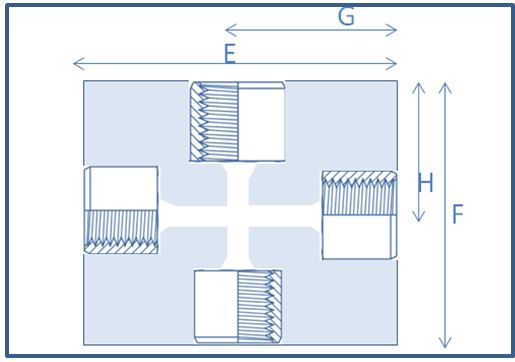

Part No. Connections E F G H Thickness
FHPF/BC/10K/2-2I 1/8″ 1 ½” 1 ½” ¾” ¾” 3/4″
FHPF/BC/10K/4-4I 1/4″ 2” 2” 1” 1” 1”
FHPF/BC/10K/6-6I 3/8″ 2” 2” 1” 1” 1”
FHPF/BC/10K/8-8I 1/2″ 2 5/8” 2 3/4” 1 5/16” 1 3/8” 1 ½”
FHPF/BC/10K/12-12I 3/4″ 2 5/8” 2 3/4” 1 5/16” 1 3/8” 1 ½”
FHPF/BC/10K/16-16I 1″ 4 1/8” 4 1/8” 2 1/16” 2 1/16” 1 ¾”
Get a Quote
Category:

Related Products

  • Shop Primary Image
    Hex Coupling Female x Female 10000 psi

    Hex Coupling,10000 psi

    TYA is the manufacturer of High Pressure Hex Coupling,10000 psi , 700 Bars. It has NPT Female Connection on both sides . Standard Material for Hex Coupling,10000 psi is SS 316 but is also available in Carbon Steel, Brass, Hastelloy , Inconel alloys , Monel alloys , Titanium , Super Duplex & Duplex .Common sizes are 1/4" NPT Female , 3/8" NPT Female , 1/2" NPT Female , 3/4" NPT Female , 1" NPT Female . High Pressure Fittings are used in almost all industrial applications where threaded connections are involved . It also used in Hydro testing setup .
    PART No.  P NPTF F HEX L
    FHPF/10K/HC/2-2I 1/8" 1/8" 3/4" 0.88"
    FHPF/10K/HC/4-4I 1/4" 1/4" 7/8" 1.13"
    FHPF/10K/HC/6-6I 3/8" 3/8" 1-1/8" 1.13"
    FHPF/10K/HC/8-8I 1/2" 1/2" 1-3/8" 1.50"
    FHPF/10K/HC/12-12I 3/4" 3/4" 1-3/4" 1.53"
    FHPF/10K/HC/16-16I 1" 1" 2-1/4" 1.89"
  • Shop Primary Image
    Hex Nipple BSP Male X BSP Male
    TYA is the manufacturer of High Pressure Hex Nipple BSP Male X BSP Male in 10000 psi , 700 Bars. It has BSP Male Connection on both sides . Standard Material for Hex Nipple BSP, 10000 psi is SS 316 but is also available in Carbon Steel, Brass, Hastelloy , Inconel alloys , Monel alloys , Titanium , Super Duplex & Duplex . Common sizes are 1/4" BSP Male, 3/8" BSP Male, 1/2" BSP Male, 3/4" BSP Male, 1" BSP Male .
  • Shop Primary Image

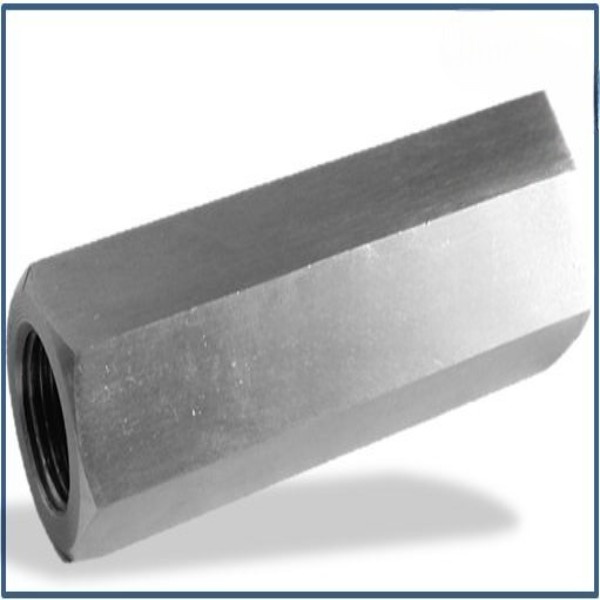

    Long Coupling ,10000 psi
