Flanged Ball Valves

HomeProductsFlanged Ball Valves
  • Shop Primary Image

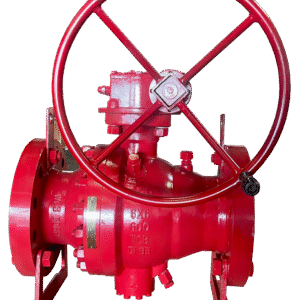

    2 Piece Cast Steel Trunnion Mounted Ball Valves
    Description: 2 Piece Cast Steel Trunnion Mounted Ball Valve STC Valve trunnion-mounted ball valves are assembled standard FireSafe and NACE certified. Sizes: 2”-12”* Pressure Range: ANSI 150, 300 & 600 Standard Features:
      • Bore: Full Port

    • API 6D: Test
    • API 607: Firesafe
    • ANSI B16.5: End Flange Dimensions
    • ANSI B16.10: Face to Face Dimensions
    • ISO 5211: Mounting Pad Dimensions
    • NACE MR0175
    • Anti-blow out proof stem
    • Anti-Static grounding
    • Firesafe Design
    • Bi-Directional
    • Locking Device standard with all Lever Operator
    • Lever or Gear operators available*Consult factory
  • Shop Primary Image

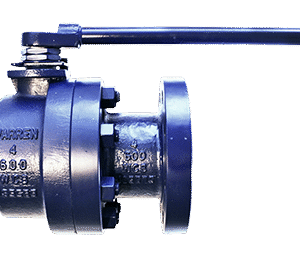

    6D Floating Ball Valves
    Size Range: 2” – 8” Pressure Range: 150 ANSI pressure class to 600 ANSI pressure class Port Sizes: Two-piece full port design, Two-piece reduced port design Material Grades: WCB, A105N Trim Materials: • Ball: 316 Stainless Steel, and exotic alloys • Stem: 316 Stainless Steel for ANSI 150–300#, F51 Duplex for ANSI 600# Standard Seat Material: TFM 1600 Packing and Gasket Material: Graphite O-Ring Material: HNBR 90 Durometer End Configurations: Raised Face and RTJ Standards: Fire safe, CE certified, NACE certified
  • Shop Primary Image

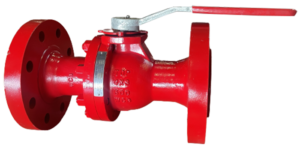

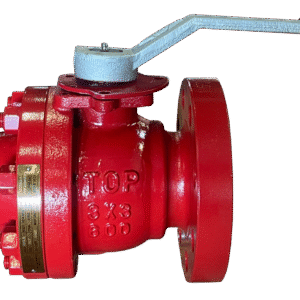

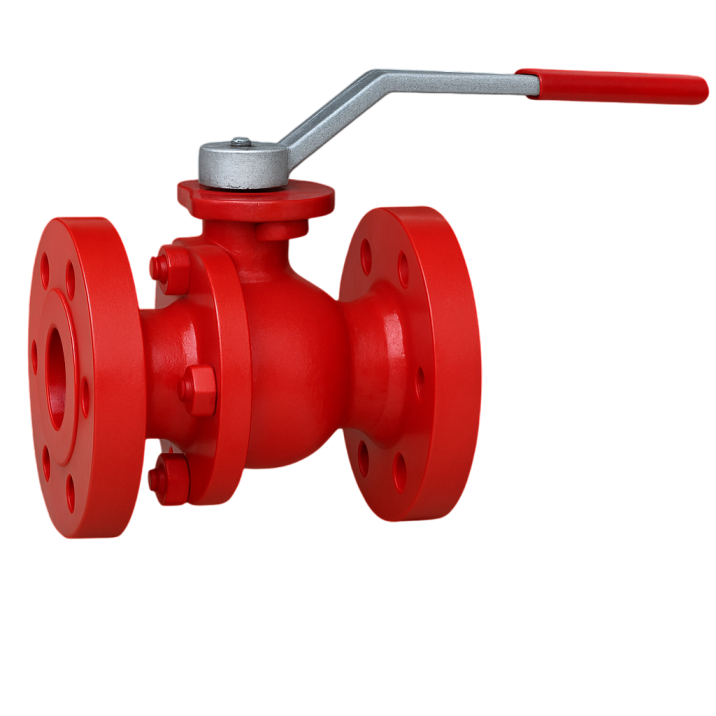

    TFBF FP CS Floater
    Description: 2 Piece Cast Steel Flanged Floating Ball Valve – TFBF Series Top Valve Floating ball valves are assembled standard Firesafe and NACE certified. Sizes: 1”-10”* Pressure Class: ANSI 150, 300 & 600 Standard Features: Bore: Full Port API 6D: Test API 607: Firesafe ANSI B16.5: End Flange Dimensions ANSI B16.10: Face to Face Dimensions ISO 5211: Mounting Pad Dimensions NACE MR0175 Anti-blow out proof stem Anti-Static grounding Firesafe Design Bi-Directional Locking Device standard with all Lever Operator Lever or Gear operators available
  • Shop Primary Image

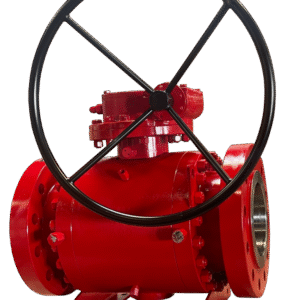

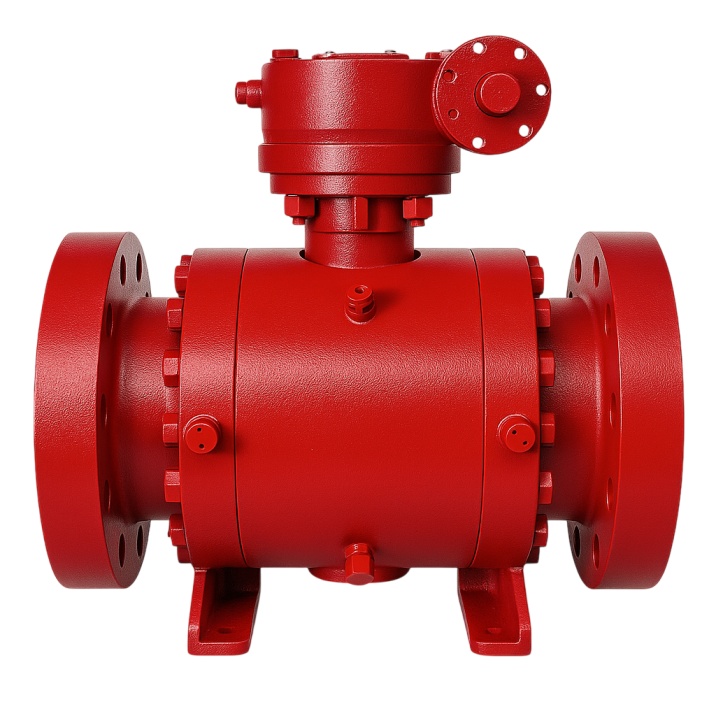

    TFBT 3PC Trunnion
    3 Piece Forged Steel Trunnion Mounted Ball Valve – TFBT Series Top Valve trunnion mounted ball valves are assembled standard Firesafe and NACE certified. Sizes: 2”-12”* Pressure Class: ANSI 900, 1500 & 2500 Standard Features: Bore: Full Port API 6D: Test API 607: Firesafe ANSI B16.5: End Flange Dimensions ANSI B16.10: Face to Face Dimensions ISO 5211: Mounting Pad Dimensions NACE MR0175 Anti-blow out proof stem Anti-Static grounding Firesafe Design Bi-Directional Locking Device standard with all Lever Operator Lever or Gear operators available
View Next Page >>
