Tube Fittings

HomeProductsTube Fittings
  • Shop Primary Image
    Male Connector Weld Degree
  • Shop Primary Image
    Male Elbow
  • Shop Primary Image
    Male Run Tee
  • Shop Primary Image
    Nut
  • Shop Primary Image
    Pipe Cap,10000 psi
    TYA is the manufacturer of High Pressure Pipe Cap in 10000 psi , 700 Bars. It has NPT Female Connection on both sides . Standard Material for Pipe Cap,10000 psi is SS 316 but is also available in Carbon Steel, Brass, Hastelloy , Inconel alloys , Monel alloys , Titanium , Super Duplex & Duplex. Common sizes are 1/4" NPT Female , 3/8" NPT Female , 1/2" NPT Female ,3/4" NPT Female, 1" NPT Female . High Pressure Fittings are used in almost all industrial applications where threaded connections are involved . It also used in Hydro testing setup .
    PART No. P F L
     NPTF  HEX
    FHPF/10K/PC/2I 1/8" 3/4" 0.85"
    FHPF/10K/PC/4I 1/4" 7/8" 0.94"
    FHPF/10K/PC/6I 3/8" 1-1/8" 1.04"
    FHPF/10K/PC/8I 1/2" 1-3/8" 1.38"
    FHPF/10K/PC/12I 3/4" 1-3/4" 1.50"
    FHPF/10K/PC/16I 1" 2-1/4" 1.85"
  • Shop Primary Image
    Pipe Plug,10000 psi
    TYA is the manufacturer of High Pressure Hex Plug in 10000 psi , 700 Bars. It has NPT Male Connection on one side. Standard Material for Hex Plug,10000 psi is SS 316 but is also available in Carbon Steel, Brass, Hastelloy , Inconel alloys , Monel alloys , Titanium , Super Duplex & Duplex . Common sizes are 1/4" NPT Male , 3/8" NPT Male , 1/2" NPT Male ,3/4" NPT Male, 1" NPT Male . High Pressure Fittings are used in almost all industrial applications where threaded connections are involved . It also used in Hydro testing setup .
    PART No. P1 F L
     NPTM HEX
    FHPF/10K/HP/2I 1/8" 7/16" 0.56"
    FHPF/10K/HP/4I 1/4" 5/8" 0.84"
    FHPF/10K/HP/6I 3/8" 3/4" 0.84"
    FHPF/10K/HP/8I 1/2" 7/8" 1.09"
    FHPF/10K/HP/12I 3/4" 1-1/8" 1.17"
    FHPF/10K/HP/16I 1" 1-3/8" 1.36"
  • Shop Primary Image
    Port Connector
  • Shop Primary Image

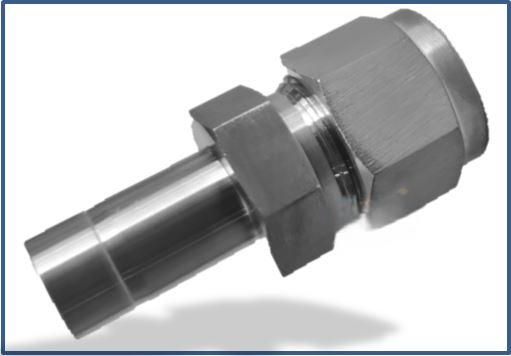

    Port Tube Adapter
  • Shop Primary Image
    Reducing Union

    REDUCING UNION (OD Tube Imperial)

    0D1 Inch 0D2 Inch 0D Inch F Hex A Inch a Inch L Inch H mm
    1/8 1/16 0.05 7/16 0.5 0.34 1.22 20.6
    3/16 1/16 0.05 7/16 0.54 0.3 1.27 21.84
    3/16 1/8 0.09 7/16 0.54 0.5 1.44 23.36
    ¼ 1/16 0.05 ½ 0.6 0.34 1.35 23.11
    ¼ 1/8 0.09 ½ 0.6 0.5 1.52 21.63
    ¼ 3/16 0.12 ½ 0.6 0.54 1.55 25.4
    5/16 1/8 0.09 9/16 0.64 0.5 1.56 25.9
    5/16 ¼ 0.19 9/16 0.64 0.6 1.66 27.43
    3/8 1/16 0.05 5/8 0.66 0.34 1.44 25.4
    3/8 1/8 0.09 5/8 0.66 0.5 1.61 26.92
    3/8 ¼ 0.19 5/8 0.66 0.6 1.7 28.44
    3/8 5/16 0.25 5/8 0.66 0.64 1.74 29.46
    ½ 1/8 0.09 13/16 0.9 0.5 1.78 28.44
    ½ ¼ 0.19 13/16 0.9 0.6 1.85 29.46
    ½ 3/8 0.28 13/16 0.9 0.66 1.91 30.98
    5/8 3/8 0.28 15/16 0.96 0.66 1.94 31.75
    5/8 ½ 0.41 15/16 0.96 0.9 2.05 31.75
    ¾ ¼ 0.19 1-1/16 0.96 0.6 1.94 31.75
    ¾ 3/8 0.28 1-1/16 0.96 0.66 2 33.27
    ¾ ½ 0.41 1-1/16 0.96 0.9 2.11 33.27
    ¾ 5/8 0.5 1-1/16 0.96 0.96 2.11 33.27
    1 ½ 0.41 1-3/8 1.23 0.9 2.38 40.89
    1 3/4 0.62 1-3/8 1.23 0.96 2.38 40.38
      REDUCING UNION (OD Tube Metric)
    0D1 mm 0D2 mm 0D mm F Hex A mm a mm
    3 2 1.7 12 12.9 12.9
    6 2 1.7 14 15.3 12.9
    6 3 2.4 14 15.3 12.9
    6 4 2.4 14 15.3 13.7
    8 6 4.8 16 16.2 15.3
    10 6 4.8 19 17.2 15.3
    10 8 6.4 19 17.2 16.2
    12 6 4.8 22 22.8 15.3
    12 8 6.4 22 22.8 16.2
    12 10 7.9 22 22.8 17.2
    16 10 7.9 25 24.4 17.2
    16 12 9.5 25 24.4 22.8
    18 12 9.5 30 24.4 22.8
    25 18 15.1 38 31.3 24.4
    25 20 15.9 38 31.3 26
    30 18 15.1 50 39.6 24.4
    30 20 15.9 50 39.6 26
    30 25 21.8 50 39.6 31.3
    32 18 15.1 50 42 24.4
    32 20 15.9 50 42 26
      Some Common Sizes for SS 316 Reducing Union are 1.TYA SS 316 Reducing Unions 1/8” OD x 1/4” OD 2.TYA SS 316 Reducing Unions 1/4” OD x 3/8” OD 3.TYA SS 316 Reducing Unions 3/8” OD x 1/2” OD 4.TYA SS 316 Reducing Unions 1/2” OD x 3/4” OD 5.TYA SS 316 Reducing Unions 3/4” OD x 1” OD 6.TYA SS 316 Reducing Unions 1” OD x ½” OD 7.TYA SS 316 Reducing Unions 6mm OD x 4mm OD 8.TYA SS 316 Reducing Unions 8mm OD x 6mm OD 9.TYA SS 316 Reducing Unions 10mm OD x 8mm OD 10.TYA SS 316 Reducing Unions 12mm OD x 10mm OD
View Next Page >>
