    Plug Valves

    Plug Valves – TYA

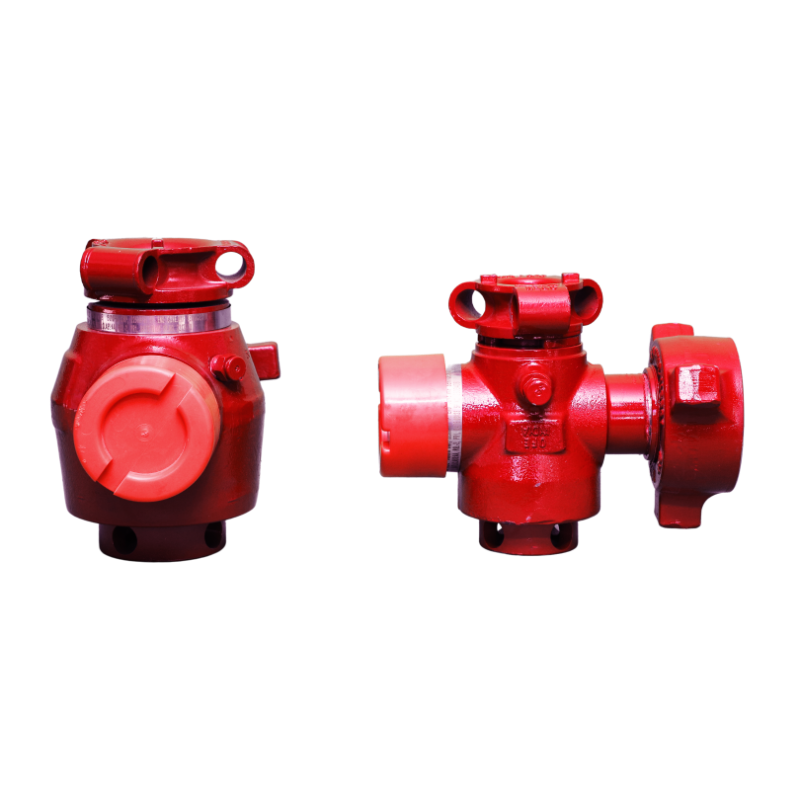

    TYA manufactures high-performance plug valves designed for reliable control in demanding high-pressure oilfield and industrial applications. Available in Standard Service and Hâ‚‚S Service configurations, our plug valves meet rigorous industry standards with:

    • Standard service: up to 15,000 psi working pressure, 22,500 psi test pressure

    • Hâ‚‚S service: up to 10,000 psi working pressure, 15,000 psi test pressure

    Constructed with a rugged forged alloy steel body, these valves ensure strength, durability, and long service life even under extreme conditions.

    Design & Features

    • Bottom entry and top entry designs for easy maintenance

    • Interchangeable valve parts with most major industry designs

    • Serialized for full traceability

    • MTR (Material Test Report) and Pressure Test Report available on request

    • Suitable for fracturing, cementing, acidizing, and other high-pressure operations

    Plug Valve Assembly Components

    Each plug valve assembly includes:

    1. Cap Screw (2 pcs)

    2. Washer (Small) – 2 pcs

    3. Washer (Bigger) – 2 pcs

    4. Handle Adapter – 1 pc

    5. Stop Bolt – 1 pc

    6. Stop Collar – 1 pc

    7. Grease Fitting – 1 pc

    8. Body – 1 pc

    9. Wing Nut – 1 pc

    10. Segment – 3 pcs

    11. Retainer Ring – 1 pc

    12. Lip Seal – 2 pcs

    13. Plug Seal – 2 pcs

    14. Plug – 1 pc

    15. Roll Pin – 1 pc

    16. Insert – 2 pcs

    17. Insert O-ring – 2 pcs

    18. Adjusting Nut O-ring – 1 pc

    19. Adjusting Nut – 1 pc

    Plug Valve Repair Kit

    The repair kit set includes:

    • Plug Seal (2 pcs)

    • Plug (1 pc)

    • Insert (2 pcs)

    • Insert O-ring (2 pcs)

    • Adjusting Nut O-ring (1 pc)

    Available Sizes & Specifications

    Size End Connection Service Working Pressure Test Pressure Operation Type A (in) B (in) C (in) D (in) E (in)
    1502 MxF Standard 15,000 22,500 Handle 10.53 4.74 4.50 4.50 1.00
    1502 MxF Hâ‚‚S 10,000 15,000 Handle 10.53 4.74 4.50 4.50 1.00
    LP Thread Standard 10,000 15,000 Handle 8.50 5.41 5.25 6.85 2.05
    1502 MxF Standard 15,000 22,500 Handle 13.88 5.41 5.26 6.85 1.75
    1502 MxF Hâ‚‚S 10,000 15,000 Handle 13.88 5.41 5.26 6.85 1.75
    1502 MxF Standard 15,000 22,500 Gear 17.00 7.20 9.06 3.05 3.05
    1502 MxF Hâ‚‚S 10,000 15,000 Handle 17.00 7.20 9.06 3.05 3.05

    Custom sizes available on request.

    Key Advantages

    • High-pressure capacity: up to 15,000 psi

    • Forged alloy steel body for durability

    • Interchangeable parts reduce downtime and costs

    • Easy maintenance design (bottom/top entry)

    • Wide application range in oilfield & industrial operations

    • Complete repair kits for extended service life

  • Shop Primary Image
    TYA Valve

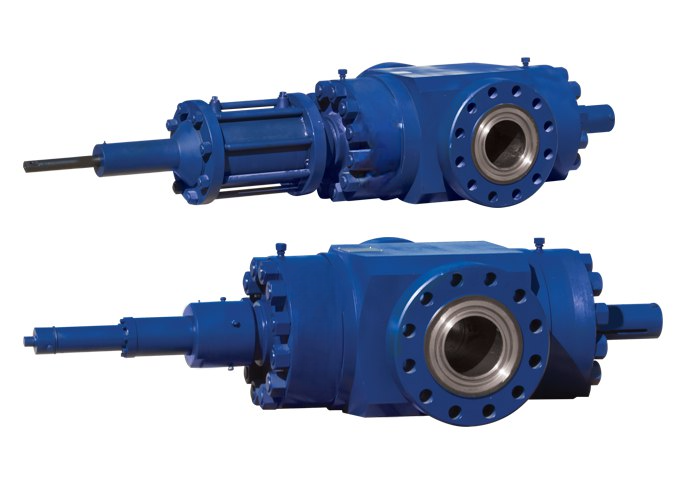

    The TYA Frac Valve is designed to meet the high demands of current fracking technology. Custom sizes and pressures are available.
    Available in multiple configurations
    • TYA Hydraulic Frac Valve
    • TYA Manual Frac Valve
    • All Sizes
    • All Pressures
    • Custom Frac Valves
