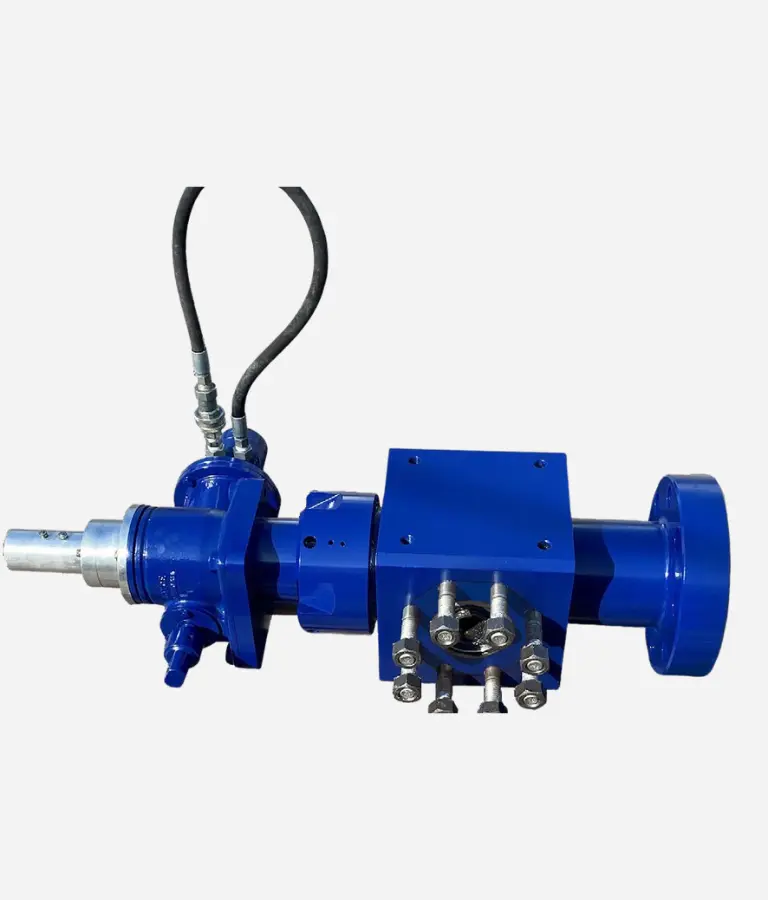

Control Master Hydraulic Worm Gear Drive Choke Valve
The model CM is a extreme duty hydraulic choke designed with field maintenance in mind.
Features:
- Worm gear actuator – provides precise movement for pressure manipulation control; self-locking to prevent movement.
- Quick removal actuator.
- 2” trim size, tungsten carbide.
- Manual override capability – on all worm gear actuators.
- Worm gear actuator can be modified to a piston with limited parts.
- Reversible gate and seat.
- Solid 2” tungsten carbide gate and seat – patented design provides maximum erosion resistance.
- Pressure balanced gate – reduces operating force.
- Downstream wear sleeve – extended-length solid tungsten carbide seat provides wear protection on body.
- Large buffer cavity – slows velocity and distributes impact of solids.
- Bleeder port to relieve pressure from choke body prior to bonnet removal for inspection or maintenance.
- Full rated working pressure throttling capability.
- Exceeds ANSI Class V drop tight seal shut off.
Related Products
-
The model CM is an extreme duty hydraulic choke designed with field maintenance in mind.Features:
- Piston actuator – provides fast movement for pressure manipulation.
- Quick removal actuator.
- 2” trim size, tungsten carbide
- Piston actuator can be modified to a worm gear.
- Reversible gate and seat.
- Solid 2” tungsten carbide gate and seat–patented design provides maximum erosion resistance.
- Pressure balanced gate – reduces operating force.
- Downstream wear sleeve – extended-length solid tungsten carbide seat provides wear protection on the body.
- Large buffer cavity – slows velocity and distributes the impact of solids.
- Bleeder port to relieve pressure from choke body prior to bonnet removal for inspection or maintenance.
- Full-rated working pressure throttling capability.
- Exceeds ANSI Class V drop tight seat seal shut off.
